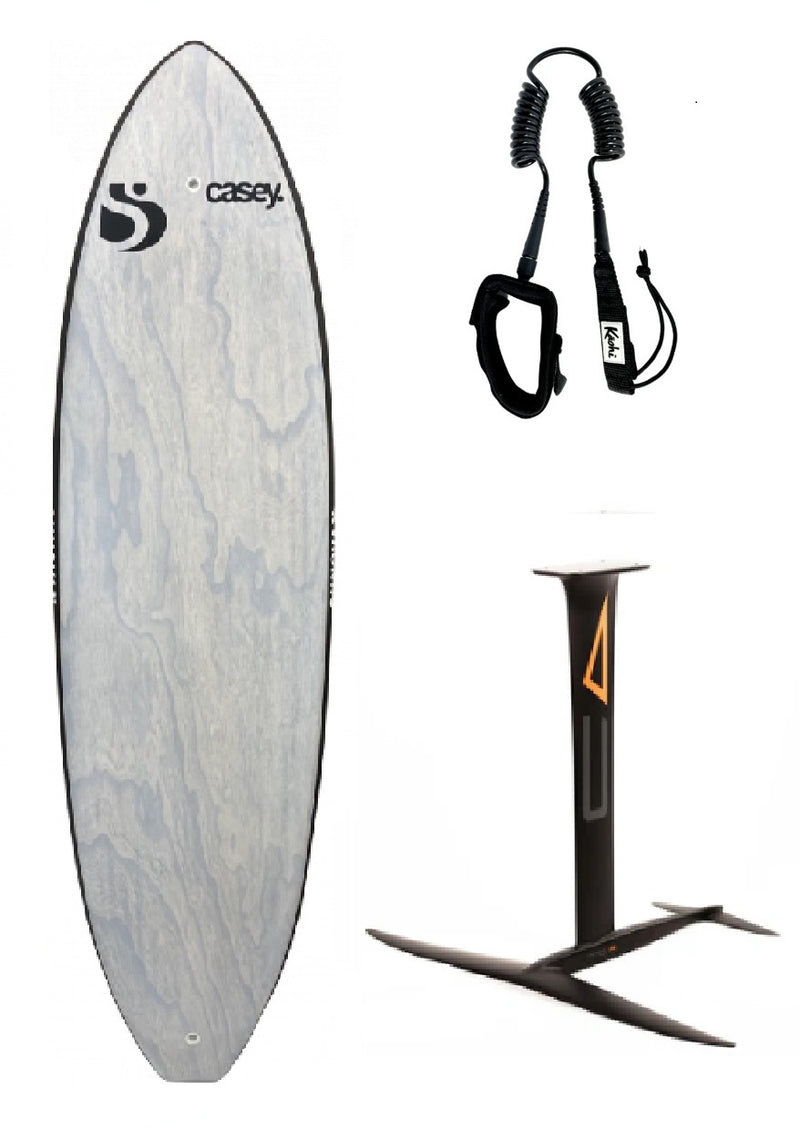

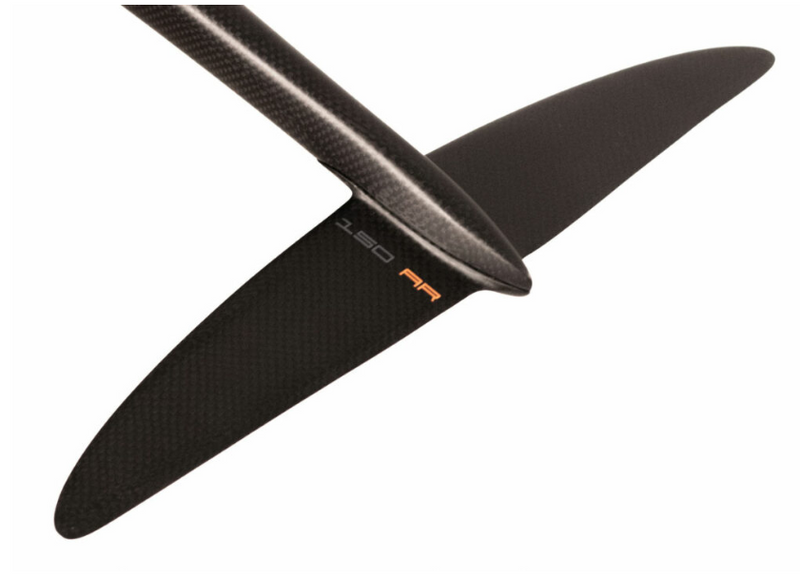

Includes: Sunova Pilot Mid, Code 980S Front Wing, Code 150AR Stabilizer, Code Small Fuselage, 80cm Code Ultra HM Plus Mast and Kaohi Leash.
If you want to change the front wing size, mast length, or the fuselage length. Please Contact Us
Sunova Pilot Mid Foilboard
Sizes :
5'1" x 18" x 3 3/16" @ 37L
5'5" x 18 1/4" x 3 7/16" @ 43.7L
5'9" x 18 1/2" x 3 11/16" @ 51L
6'1" x 18 3/4" x 4" @ 59L
THE PILOT MID will make your foiling days more enjoyable.
This is a new introduction to the range to keep up with an ever-evolving sport. Performance is not always about having the smallest board possible, you can achieve this by having a harmonious balance of design features.
With its additional length and narrower width the Pilot Mid paddles into waves like a dream, but with a notably forward foil position and very narrow tail, you can push it really hard without feeling the extra size.
Outline
Pulled in the nose, parallel midsection, to pulled in tail. The narrower nose and tail help to lay the board over on harder carves without catching a rail. The parallel mid-section helps with speed, and the overall longer/narrower plan shape enables the board to be super-efficient.
Rails
Chined with hard bottom edges. The flat chined rails enable more radical carves and maneuvers, without catching a rail. The hard edges help water release more efficiently, reducing drag.
Rocker
Flatter with subtle nose kick and aggressive tail kick. The flatter rocker helps the board to get on the foil effortlessly. The aggressive tail kick helps when you are pumping up, or taking off. It also ensures you have more space between the board and wave in critical white water sections.
Bottom
Subtle rounded V into flat midsection. The subtle V at the front helps the board on touchdowns, it won’t immediately stick and bog. The flat planing surface through the middle allows the board to glide and glance over any sections you throw at it.
Deck
Concave Deck. We have a concave deck to get the rider as close to the foil as possible while maintaining the volume needed. It's a soft concave without any drastic edges so it doesn't trap water on the deck after takeoff. The deck line has been pulled right out to the edge of the rail edge, making the usable deck area as large as possible. This is especially important in these narrower designs.
An easy-to-use, performance mid-length foilboard for Prone, Wing, and Downwind.
CONDITIONS IT'S WORKING BEST:
Any conditions. Whatever you usually Prone, Wing, or Downwind.
SKILL LEVEL IT'S BEST FOR:
Novice to pro. Just choose the size according to the level.
WHAT YOU THOUGHT OF WHEN YOU DESIGNED IT?:
I wanted a board that was super easy to catch waves on but didn’t feel oversized and cumbersome when on foil. Something that you could Prone, Wing, or Downwind. One board that covers a range of conditions and disciplines, so you’re ready no matter what Mother Nature throws at you.
WHAT IT POSSIBLY COMPROMISES ON THEN?:
These skinny boards are very sensitive, it could take some getting used to for some riders.
FINAL STATEMENT
If you're looking for an easy-to-use, yet surprisingly nimble mid-length board for Prone, Wing, Downwind, or even Foil Drive, then this is the board for you!
The Sunova Carver Casey Foilboard might be more your type!?
Are you thinking about getting into foil assist systems? Maybe the Sunova X Foil Drive Foilboard is for you!
Code S Series Front Wings
Includes: Front Wing, Cover, Front Wing Bolt Pack (2x30mmM6Bolt)
Sizes : 500 | 615 | 720 | 850 | 980 |1130 |1300 | 1540.
Available in eight sizes to offer completely different characteristics to the rider’s quiver.
- The ultimate all round wing, beginner to advanced
- Prone, Wing, SUP or even Downwind this foil excels in all disciplines of foiling.
- Adept in critical sections as well as drawing smooth flowing lines.
- Suitable for all levels of rider.
- The High Modulus 1130 and 1300 are the go-to wing for heavier riders in all disciplines
SIZES
500S - Highly maneuverable / Performance Foil
SPAN: 695mm / 27.3inAREA: 500 cm2 / 77.5 cm2
A/R: 9.5
615S - Remarkably fast & loose / Suitable for towing
SPAN: 765mm / 30.1inAREA: 615cm2 / 95in2
A/R: 9.5
720S - Loose & Surfy
SPAN: 830mm / 32.7inAREA: 720cm2 / 112in2
A/R: 9.5
850S - All Round
SPAN: 900mm / 35.4inAREA: 850cm2 / 132in2
A/R: 9.5
980S - Larger, all round
SPAN: 965mm / 38inAREA: 980cm2 / 152in2
A/R: 9.5
1130S High Modulus - Go-to for heavier riders in all disciplines
SPAN: 1035mm / 40.55inAREA: 1130cm2 / 175in2
A/R: 9.5
1300S High Modulus - Versatile beginner
SPAN: 1115mm / 43.9inAREA: 1300cm2 / 201.5in2
A/R: 9.5
1540S - Beginner Friendly / Dock start & multi discipline beginner
SPAN: 1210mm / 47.6inAREA: 1540cm2 / 238.7 cm2
A/R: 9.5
![]()
Designer Notes
The S Series is a wing for everybody and every discipline. We have designed this foil with a foil section that provides early smooth and predictable lift. With a mid to high aspect ratio and a high lift foil section the rider is able to use a smaller area foil to give more maneuverability, extreme glide and pumping efficiency to flow through turns and connect as many waves as you like. When pushed in the surf the wing tips will breach with ease and control and ride out of white water sections with confidence and stability under foot.
- Marcus, Ben, Dan and James
Code Fuselages
Includes: Fuselage, Cover, Fuse Bolt Pack (2x16mm M6 Bolt)
SIZES
-
X-Small | 450mm | Tighter turns & enhanced maneuvering
- Length from front of mast: 450mm / 17.7in
-
Small | 480mm | Total Stiffness & Versatility
- Length from front of mast: 480mm / 18.9 in
-
Medium | 510mm
- Length from front of mast: 510mm / 20.1 in
-
Large | 540mm | Total Stiffness & Versatility
- Length from front of mast: 540mm / 21.2 in
We offer four lengths of fuselages to enhance the versatility of our range. In addition to the medium, we provide an 'extra small', a 'small', and a 'large' fuselage. These are constructed with a 30mm incremental difference.
The smaller sizes allow for a higher cadence pump and add even more maneuverability to the range, whereas the large fuselage provides greater pitch stability, making it ideal for beginners. Many downwind foilers prefer the large fuse for its additional stability and slower cadence pump.
All sizes feature the same unique joining system and tail mounting surface as our medium fuselage.
Available in four lengths, extra small, small, medium and large depending on how you ride.
- Our fuselage is designed for total stiffness and versatility in mind, giving you the ability to customize your setup with four different fuse lengths.
- Add to this the ability to change your tail wing and to shim to suit your unique style and feel.
- A unique joining system providing a join with zero movement!
- Available in four lengths, extra small, small, medium and large depending on how you ride.
- We've designed the tail mounting plate with m6 bolts, 30mm apart. Riders can mount their favorite tails to the code setup if they wish for more versatility and experimentation.
- The XS fuse is uniquely Designed for tighter turns and enhanced maneuvering, this fuselage is perfect for advanced riders. We recommend pairing it with larger foils to maximize your maneuverability and responsiveness. If you're winging though, match it with your current set up to make it loose, lively and keep you in the pocket.
Designer Notes
When designing our fuselage our main goals were strength, stiffness and absolutely zero movement in the joins. We also wanted the setup to be adaptable so we have made the fuse in 4 different lengths and provided the option to change tail wings simply and quickly to find the perfect setup for each rider.
- Marcus, Ben, Dan and James
Code Foils Ultra HM Plus Mast wt Cover
Includes: Mast, Cover, Hardware Pack (4x30mm M8 Bolt / 4x14mm M8 Tracking Nut/ 2x25mm M6 Bolt/ 1xT30 Tool/ 1xT40 Tool)
Available in 3 sizes: 75cm | 80cm | 85cm,
The PLUS MAST SERIES is the latest development by Code in Masts. This Ultra High Modulus Mast from Code Foils has outstanding stiffness in both torsion and flexion. It is crafted from ultra high modulus carbon with consideration in its layering to ensure the best possible product.
It features the same distinctive design and comes from the same mold as the original mast. It features the same extended blend to the base plate and a tapered thinned bottom to improve glide and efficiency when high on the mast.
This mast is specifically engineered to optimize glide and energy efficiency while minimizing unwanted movements.
The new Code Foils “Plus” masts share the same profile and are constructed from full ultra-high modulus carbon fiber. Our existing mast, the stiffest in its price bracket on the market, serves as the benchmark for our comparisons.
The Plus Masts exhibit a 41% increase in torsional stiffness and a 59% increase in flexural stiffness compared to our original high modulus standard masts. *Calculations based on tests of the 80cm Mast.
SIZES
75 - Shallow areas, prone, downwind & dock foiling
SPAN: 75cm / 29.5in80 - Allows more bank in the turn, one mast quiver option between disciplines
SPAN: 80cm / 31.5in85 - Wing foil, bigger surf & tow
SPAN: 85cm / 33.5inDesigner Notes
We’re excited to introduce our “plus” stiff mast after considerable testing and develop : a new mast featuring the same acclaimed shape and design but constructed with a brand-new stiff layup. Our original mast is already renowned as one of the stiffest and best-performing options available in its price bracket. This new iteration offers riders an enhanced level of control and an unparalleled riding experience, providing an incredibly stiff option for people on the water. Importantly, we are keeping the original mast available, as this new version is not a replacement but an additional choice for our customers.
- Marcus, Ben, Dan and James
Kaohi Board Leash - Double Coil 5.5mm
Includes: 4 Foot Ankle Leash
Kāohi means control. Kāohi Double Coil 5.5 mm Leash works for Boards and Winging
At 5.5 mm, it is lightweight, minimizing drag, and yet very durable, to stand up to intense shredding. The 5.5 mm Double Coil is well suited for use on smaller boards, so it is a favorite of hot-dogging prone foilers, but anything goes in foiling.
For use with your BOARD, choose either an Ankle or Calf cuff with a 6 foot length. These short lengths of our double-coil design keep the leash free from snagging on your mast.
For Wing Boards, in heavier conditions, consider an 8mm version.
Double Coil Advantage:
- Reduces kinking and tangling up on itself, often a problem with standard coil leashes
- Creates less drag by keeping your leash out of the water
- Provides Wing Foilers control of their Wing without tangles, using either Wrist cuff or an Ankle cuff worn on the wrist
- Reduces frustration, so you enjoy your time on the water
- Offers comfort and durability, due to high quality, heavy duty construction
- Designed specifically for Foiling; US patent pending
