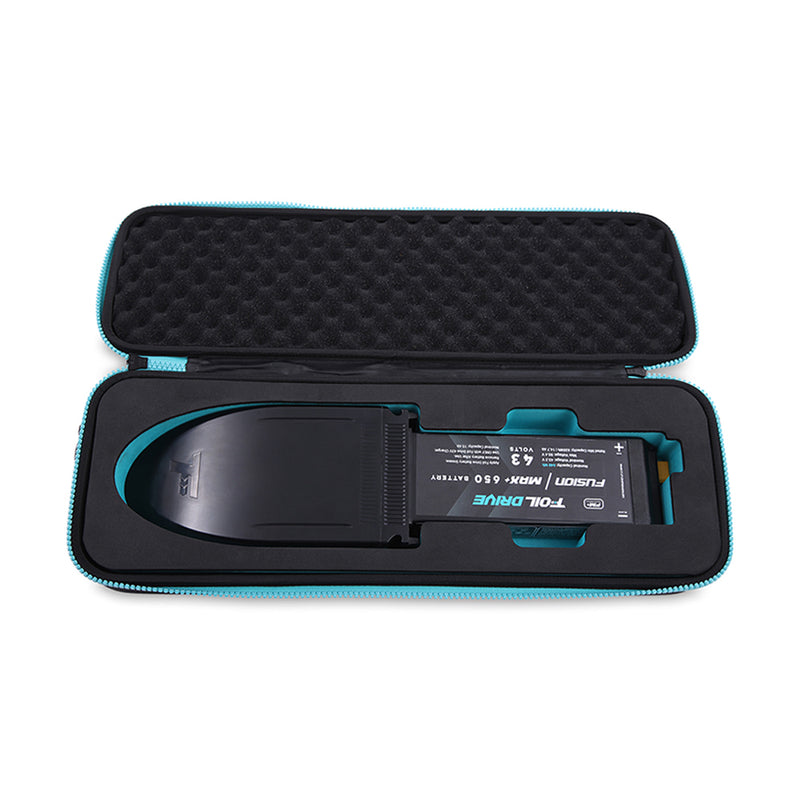

Included: (1)Foil Drive MAX+ Power Battery & (1) Battery Carry Case

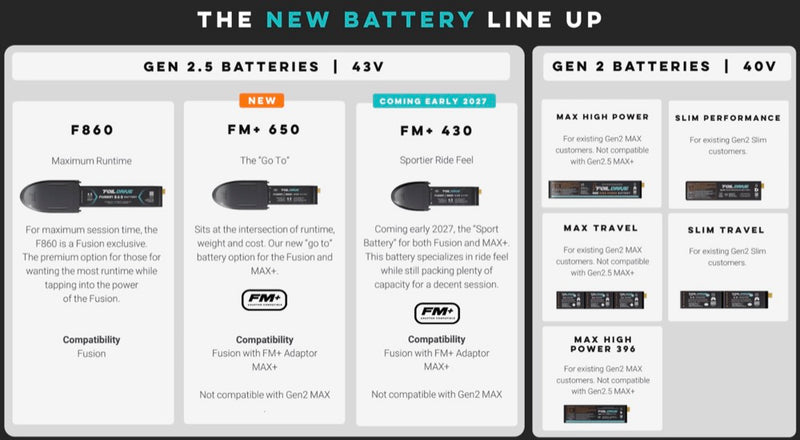

Foil Drive Fusion/MAX+ Batteries

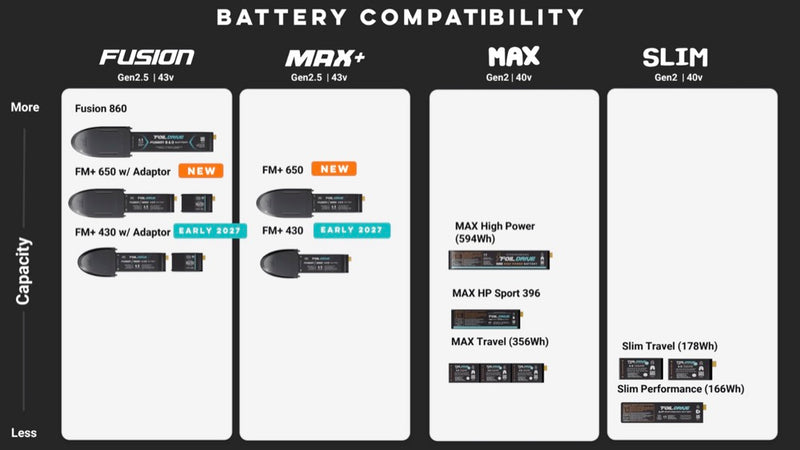

Only compatible with Fusion with FM+Adapter & MAX+
Not Compatible with Gen2Max

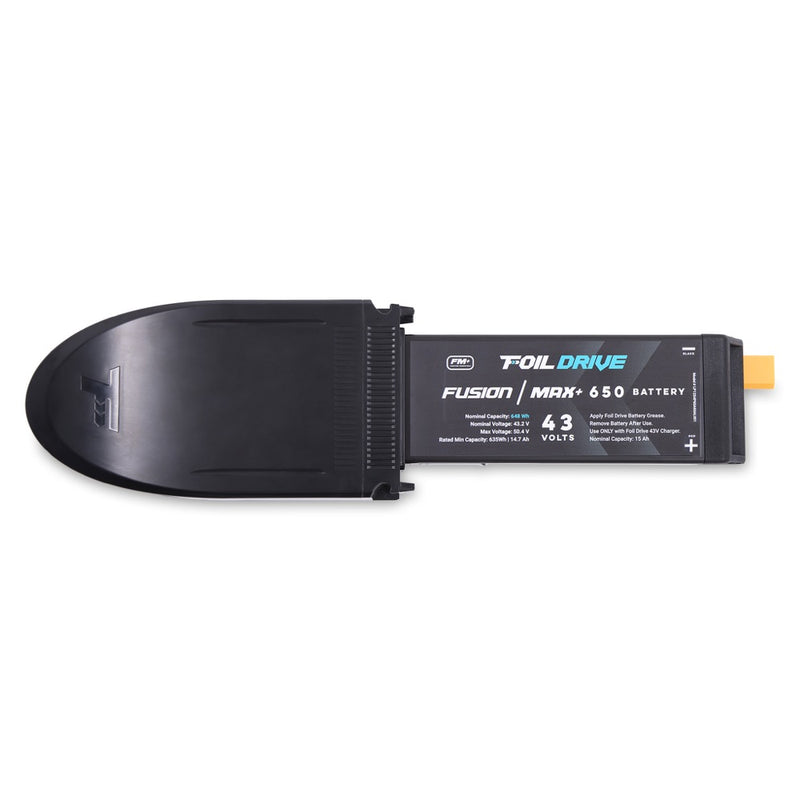

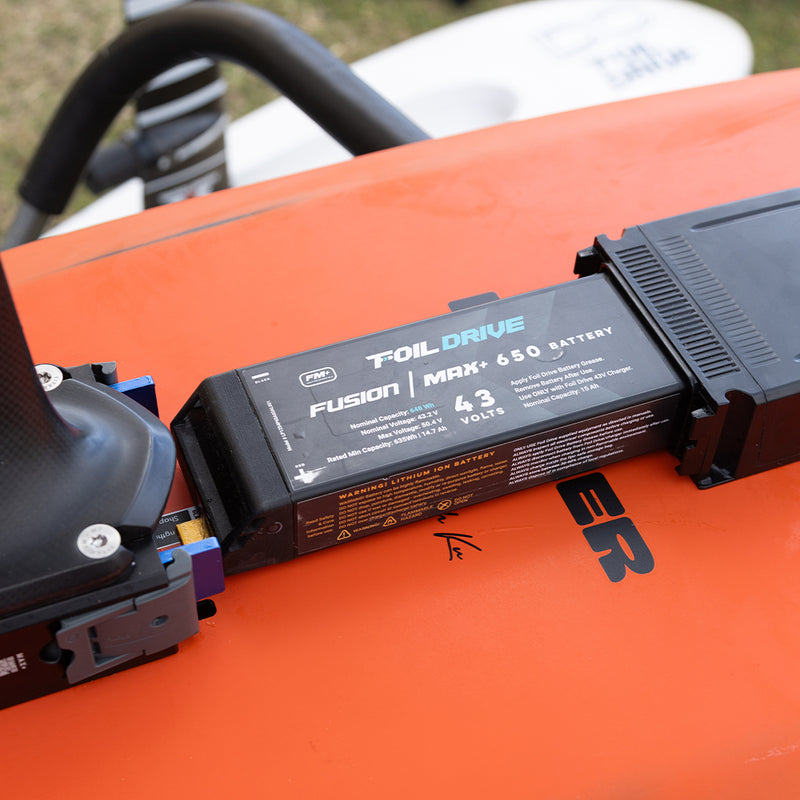

FM+650 Battery

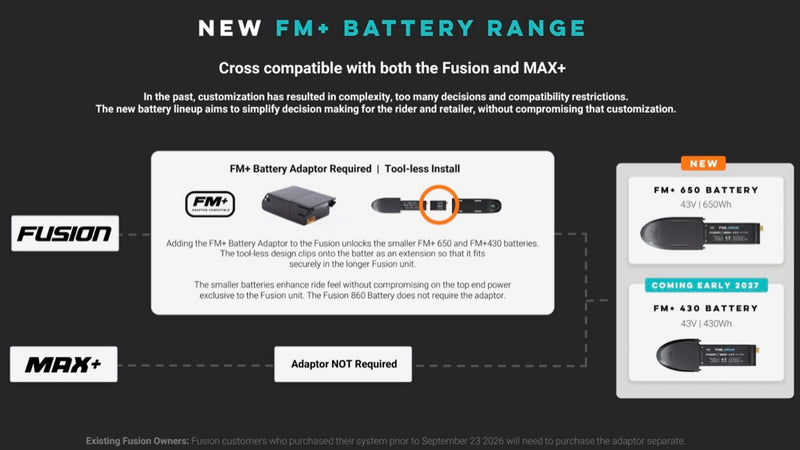

The FM+ 650 Battery sits at the intersection of runtime, weight and cost, and is the go-to option for Gen2.5 Fusion and MAX+ units. With 648Wh of capacity, Foil Drive’s 43V architecture delivers powerful, consistent thrust and endurance for extended surf sessions, upwind/downwind runs, wake riding, pumping, flatwater starts and light eFoiling. It works across Fusion and MAX+ setups: add the FM+ Battery Adaptor for Fusion, while MAX+ riders get the highest-capacity battery and Fusion riders gain a lighter, more manoeuvrable option.
Compatible with
- Foil Drive Fusion (with FM+ Battery Adaptor)
- Foil Drive MAX+
- FM+ Battery Adaptor
- 43V Standard Charger
- Foil Drive Battery Caddy (with FM+ Battery Adaptor)
- Not Compatible with Gen 2 MAX Unit.
Details
Gen2.5 Battery Technology allows deeper cycle performance, delivering full power down to ~10% battery before normal sag. Charging: requires the 43V Charger supplied with Fusion or MAX+; averages 85 minutes and includes Storage Mode. Store at 30–60% SoC. Intelligent Bluetooth Module (BMS) provides accurate data to the V3 Controller and Foil Drive App, including battery naming, health and SoC. One-piece molded design unifies battery and nose cone for sealing, water flow, durability and balanced weight over the foil’s centre of lift. Internal thermal management keeps temperature stable for consistent power and smooth thrust from start to finish.
Tech Specs
Run Times
Runtime varies by skill, weight, gear sizing and weather conditions; indicative guide only.
*E-Foil basis: 80 kg rider, 800 cm2 wing, 5'0 40L board, flat water, throttle ~70%; Intermediate has touch downs/falls/restarts, Advanced has none.
*E-Foil Runtime Intermediate: ~31 mins
*E-Foil Runtime Advanced: ~52 mins
**Surf basis: 80 kg rider, 800 cm2 wing, 5'0 40L board, 3ft swell, under 5kts wind; Intermediate has high motor reliance and many falls/restarts, Advanced medium reliance, some pumping and minimal falls/restarts.
**Surf Runtime Intermediate: ~40-50 mins
**Surf Runtime Advanced: ~55-70 mins

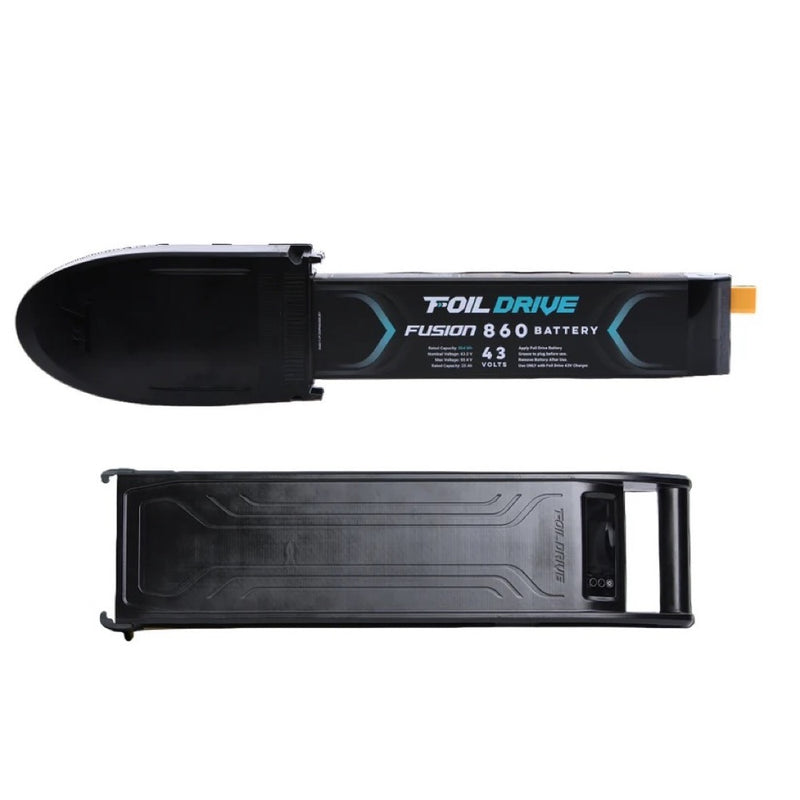

Fusion 860 Battery

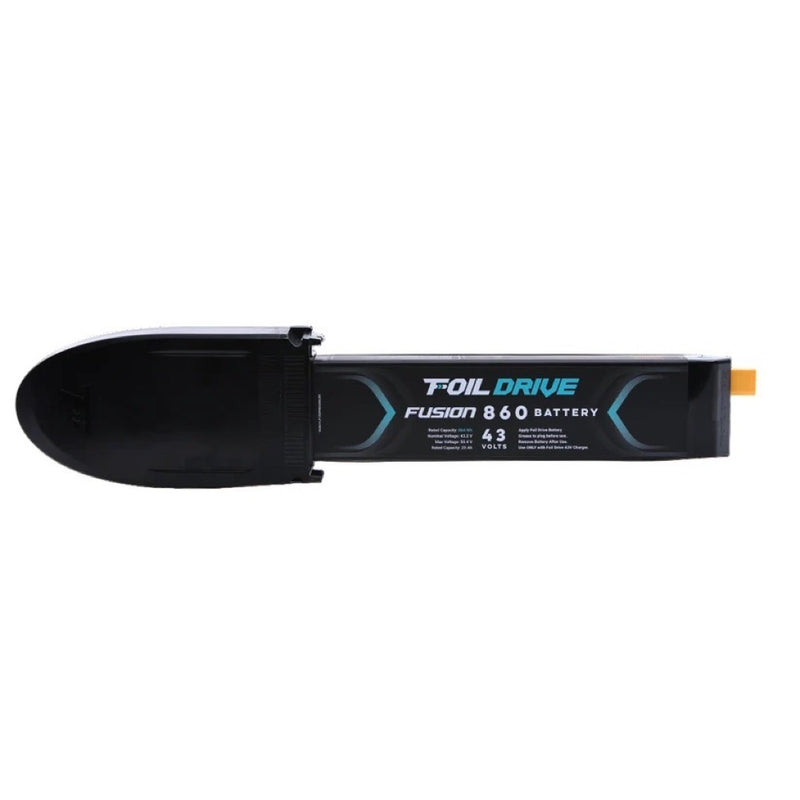

The Fusion 860 Battery delivers long-range power, efficiency, and intelligent management, providing 40% more thrust and 2x the runtime of a MAX Power Battery. Built on a 43V architecture with 864Wh capacity, its one-piece molded battery and nose cone improve water flow, durability, and balance over the foil’s centre of lift. The Intelligent Bluetooth Module (BMS) reports battery percentage, status, health, and live State of Charge to the V3 Controller and Foil Drive App. Internal thermal management maintains stable temperature and consistent power. The Battery Caddy protects the battery, supports Storage Mode, and includes USB-A and USB-C charging ports. Requires a 43V Charger; average charge time is 120 minutes. Store at 30–60% State of Charge (SoC).
Compatible With:
- Foil Drive Fusion
- 43V Standard Charger
- Foil Drive Battery Caddy
- Not compatible with Gen 2 Units
Details
Gen2.5 Battery Technology allows full power delivery down to approximately 10% battery before noticeable sag. The Fusion 860 Battery provides long sessions, reliable power delivery, and maximum system utility.
Charging requires the 43V Charger supplied with the Fusion or MAX+ System; average charge time is 120 minutes. Storage Mode supports long-term battery health; store at 30–60% SoC.

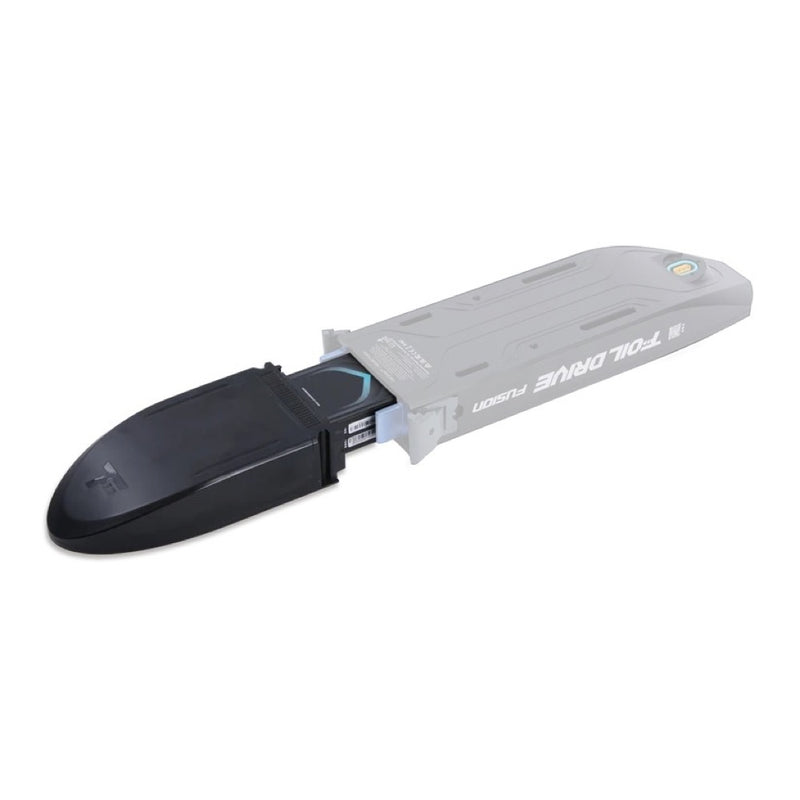

The Intelligent Bluetooth Module (BMS) reports battery percentage and status to the V3 Controller and Foil Drive App. The one-piece molded battery and nose cone improve water flow and durability. Internal thermal management maintains stable temperature and consistent thrust.

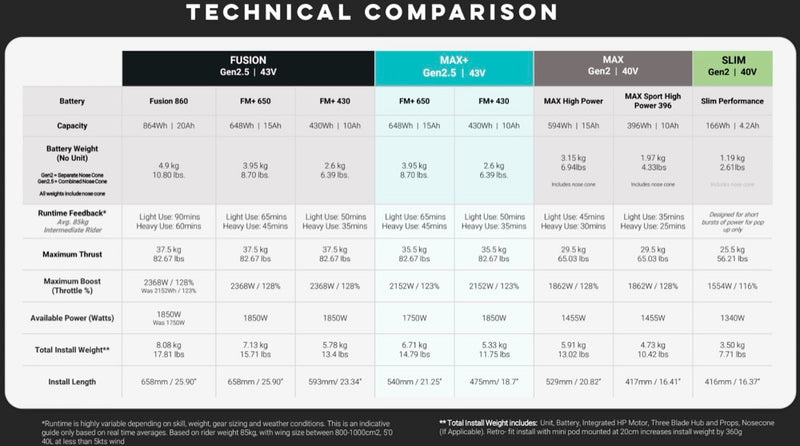

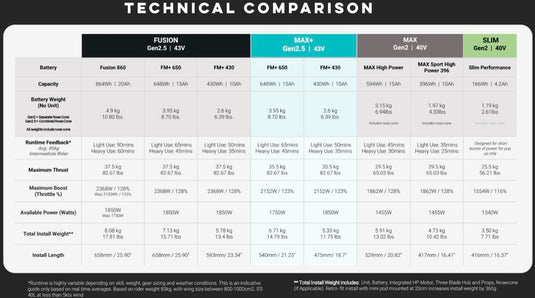

Tech Specs
Rated Capacity: 864 Wh
Amp Hours: 20 Ah
Nominal Voltage: 43.2 V
Max Voltage: 50.4 V
Battery Weight: 4.9 kg / 10.8 lbs
Battery Dimensions: L575 × W125 × H55 mm
Dimensions Installed: L658 × W125 × H55 mm with MAX+ and Fusion
Nose Cone: Not Required – Integrated
Battery Type: Lithium-Ion
Water Rating: IP68 + IP69 Water and Dust Resistance
Certified: UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68, IP69
Rated Capacity: 864 Wh
Amp Hours: 20 Ah
Nominal Voltage: 43.2 V
Max Voltage: 50.4 V
Battery Weight: 4.9 kg / 10.8 lbs
Battery Dimensions: L575 × W125 × H55 mm
Dimensions Installed: L658 × W125 × H55 mm with MAX+ and Fusion
Nose Cone: Not Required – Integrated
Battery Type: Lithium-Ion
Water Rating: IP68 + IP69 Water and Dust Resistance
Certified: UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68, IP69
Run Times
Runtime varies by skill, weight, gear sizing and weather conditions; indicative guide only.
*E-Foil basis: 80 kg rider, 800 cm2 wing, 5'0 40L board, flat water, throttle ~70%; Intermediate has touch downs/falls/restarts, Advanced has none.
*E-Foil Runtime Intermediate: ~41 mins
*E-Foil Runtime Advanced: ~65 mins
**Surf basis: 80 kg rider, 800 cm2 wing, 5'0 40L board, 3ft swell, under 5kts wind; Intermediate has high motor reliance and many falls/restarts, Advanced medium reliance, some pumping and minimal falls/restarts.
**Surf Runtime Intermediate: ~50-80 mins
**Surf Runtime Advanced: ~80-110 mins
