Flysurfer Mixer Bridle Lines
Flysurfer recommends replacing both sides at the same time.
For SOUL, PEAK 3 & 4, SPEED3, SPEED4 Lotus, SPEED5, SONIC-FR, SONIC2, SONIC 3, SONIC4
NAME
|
LENGTH
|
COLOR
|
MATERIAL
|
KITE COMPATIBILITY
|
SKU
|

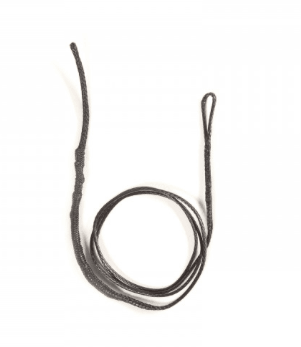

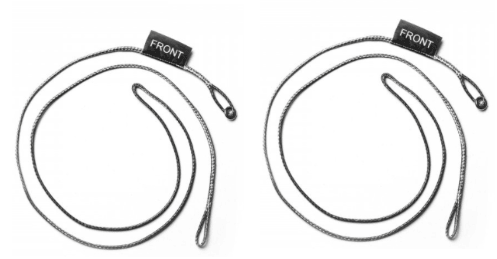

Front Main Line (1 pair /2 pcs) | 1m | Black | DC 500 | Peak3, Peak4, Peak5, Sonic2, Sonic3, Sonic-FR, Viron3, Soul V1, Soul V2 | FAMSST2V7FRM |

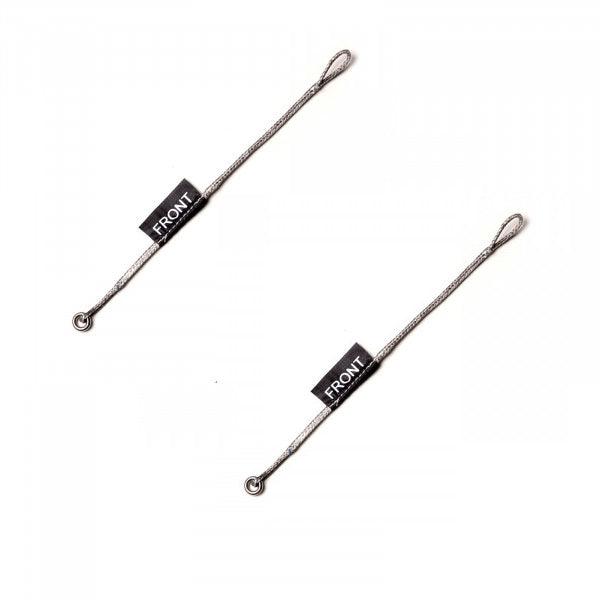

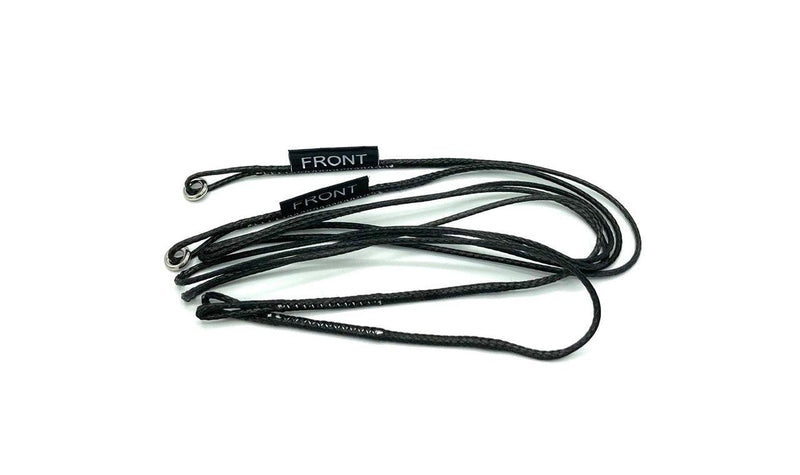

Front-Main Line Set (1 pair / 2 pcs) | 20cm | Black | DC500 wt spliced steel ring, black | FAFMLS020 | |
A-Main (1 pair / 2 pcs) | Black | DC 300 | Peak3, Peak4, Peak5, Soul V1, Soul V2, Sonic2, Sonic3, Sonic-FR | FAMSST2V7AM | |
B-Main (1 pair / 2 pcs) | Black | DC 500 | Peak3, Peak4, Peak5, Soul V1, Soul V2, Sonic2, Sonic3, Sonic-FR | FAMSST1BM | |
C-Main (1 pair / 2 pcs) | Black | DC 500 | Peak3, Peak4, Peak5, Soul V1, Soul V2, Sonic2, Sonic3, Sonic-FR | FAMSST1CM | |

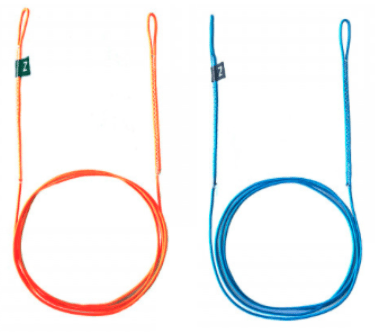

Z-Main (1 pair / 2 pcs) | 1.2m | Orange /Blue | PPSL200 | Soul 2, Peak5 (will work on soulV1, but different color) | FAMSST2V7ZM |
Back Main Line (1 pair / 2 pcs) | 1m | Orange /Petrol | DC 200 | Peak3, Peak4, Soul V1, Sonic2 | FAMSST1BAM |

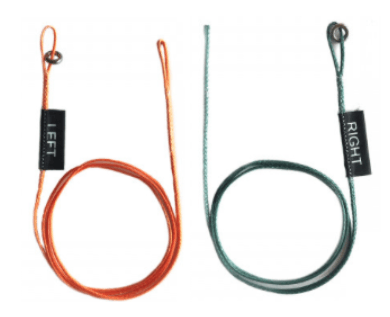

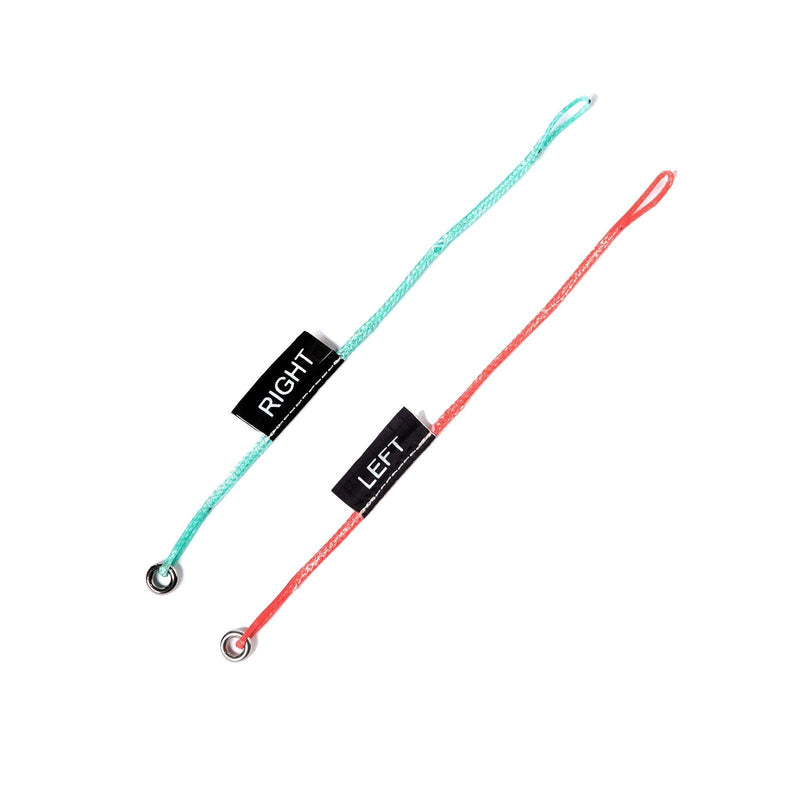

Back-Main Line Set (1 pair / 2 pcs) | 20cm | Green/ Red | DC200 wt spliced steel ring | FABMLS020 | |

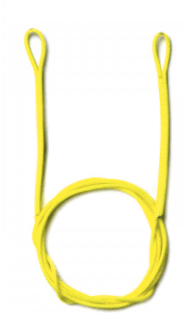

B-Pulleyline (1 pair / 2 pcs) | 1.2m | Yellow/ Grey | DFL 200 | Soul V1, Sonic-FR, Sonic2, Sonic3, Peak1, Peak2 | FAMSST1BPL |
C-Pulleyline (1 pair / 2 pcs) |
1 m | Silver/ Grey | DFL 200 | Soul V1, Sonic-FR, Sonic2, Sonic3, Peak1, Peak2 | FAMSST1CPL |
All FLYSURFER kites require two of each of these lines. It's advisable to replace both at the same time to avoid differences in length between the new and old lines.

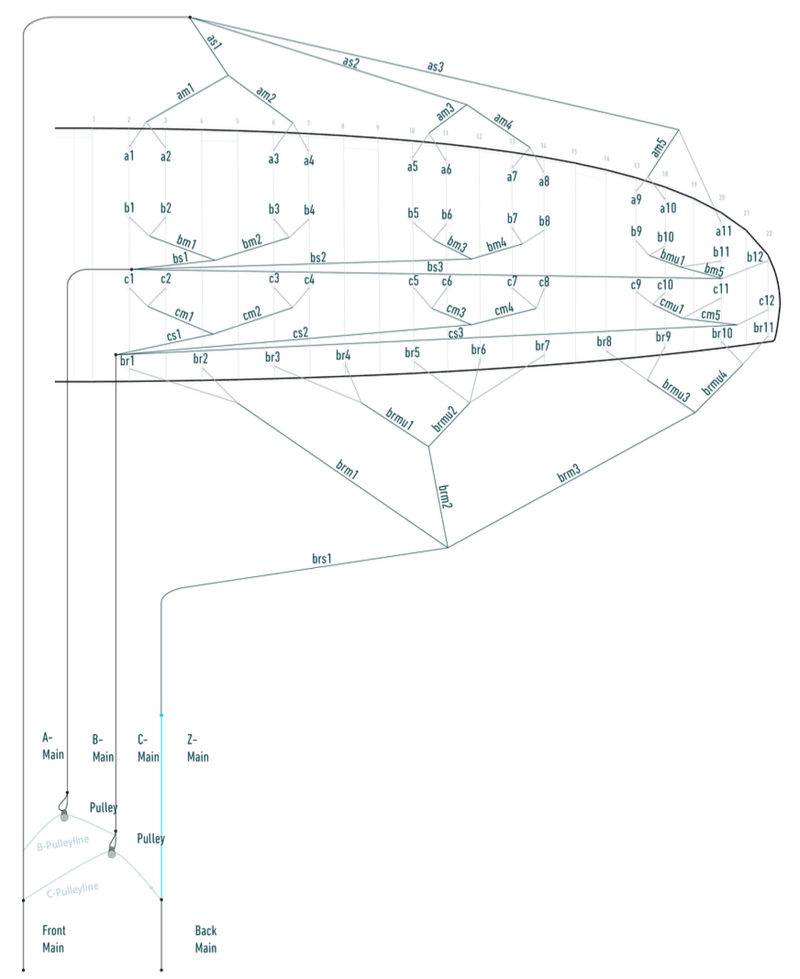

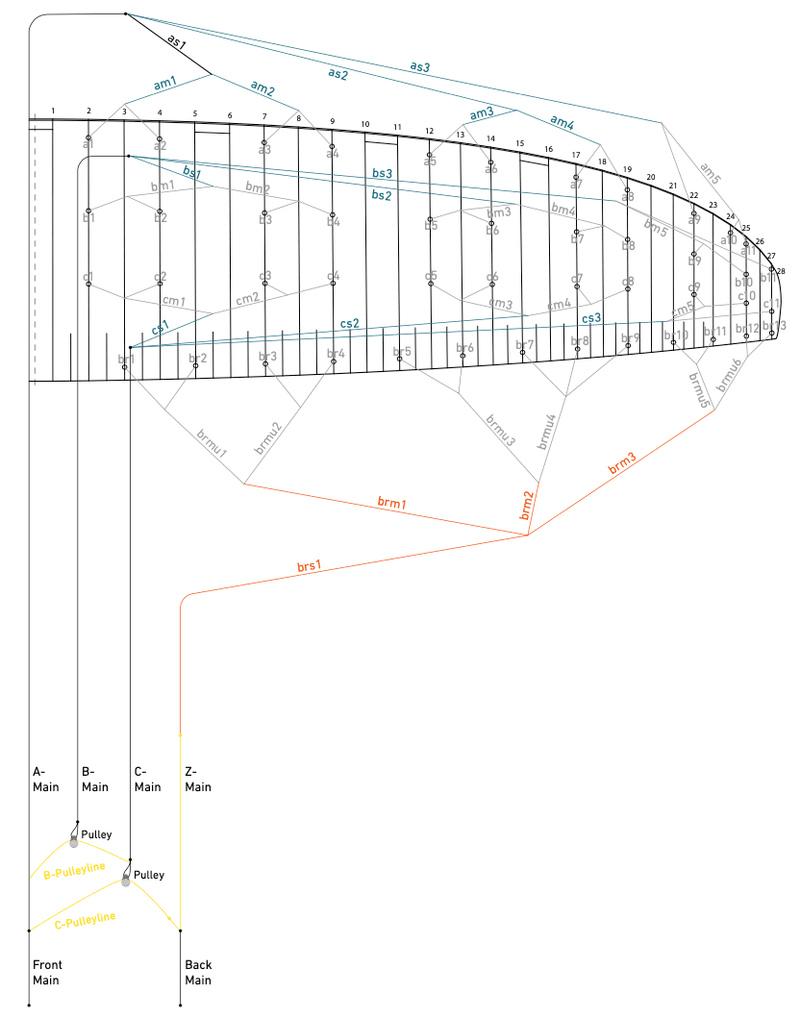

NOTE: The standard mixer ( for Sonic3 & most other kites) & the Standard V7 mixer ( for Sonic4 ) have identical specs for most parts according to the FLYSURFER line plans.
Keep in mind that the Sonic 3s Z-main, B-Pulley and C-Pulley are YELLOW whereas, the Sonic 4s Z-main, B-Pulley and C-Pulley are GREY. Nonetheless, they have the same LENGHT, CUTTING & MATERIAL.
