Short description
Includes: Your choice of: Gravity FCT front wing, Aluminum fuselage, and FCT stabilizer.
The foils of the GRAVITY line are designed to provide a solid lift with an easy and progressive take-off. In keeping with its best-selling carbon sibling, this GRAVITY FCT is the ideal foil to get started and progress confidently and constantly.
Description

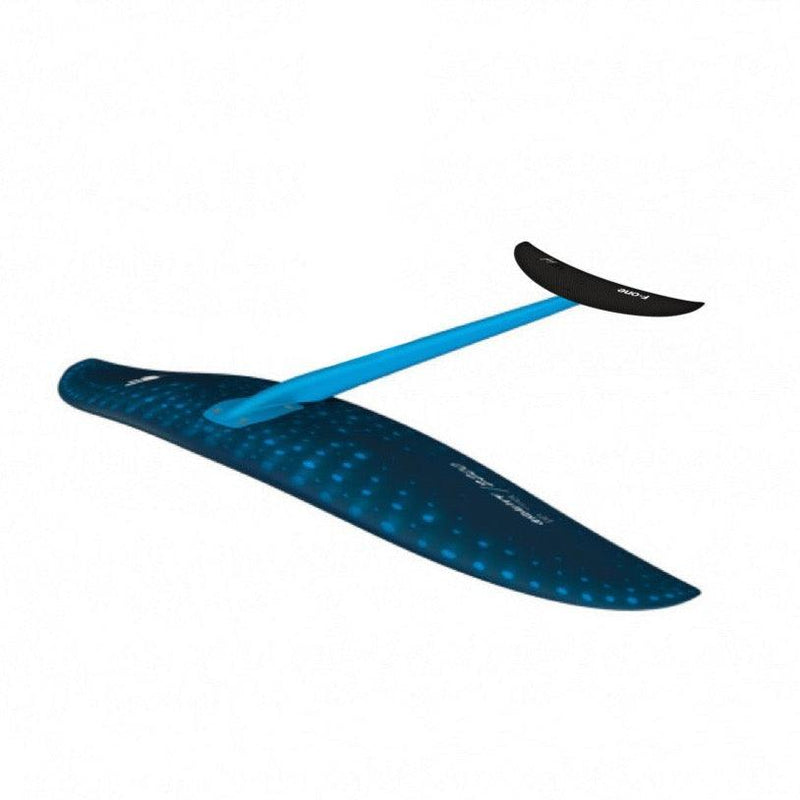

F-One Gravity FCT Foil Plane
A GRAVITY foil is intuitive. It generates lift at low —and even very low— speed but does it smoothly so you can easily keep your balance.
The range includes two sizes: 1800 and 2200 cm². Foils with such areas support an early take-off and more lift and stability. However, we still made sure they also come with enough aspect ratio to maintain a decent speed range and to avoid unnecessary drag.
The span is generous, making it a very reliable and intuitive foil. It also allows you to control low speeds and is overall extremely stable. The refined shape details such as the arch curvature, the profile and the wing tips insure it remains highly maneuverable.
This GRAVITY FCT range is a fantastic option for anybody looking to discover foiling and wanting to consistently progress. Its durable and sturdy materials can withstand the typical mistakes of the early learning stages, and this foil is overall extremely forgiving.
The GRAVITY FCT line is more precisely built with the Foil Compression Technology, a F-ONE innovation that offers impressive mechanical properties. The fuselage can be connected to the standard F-ONE aluminum mast of the desired length. The setup and disassembly are also extremely easy, and the whole is very travel friendly. All in all, this technology provides one of the most accessible and scalable foil setups whilst keeping the DNA of its carbon counterpart.
Recommended Plane

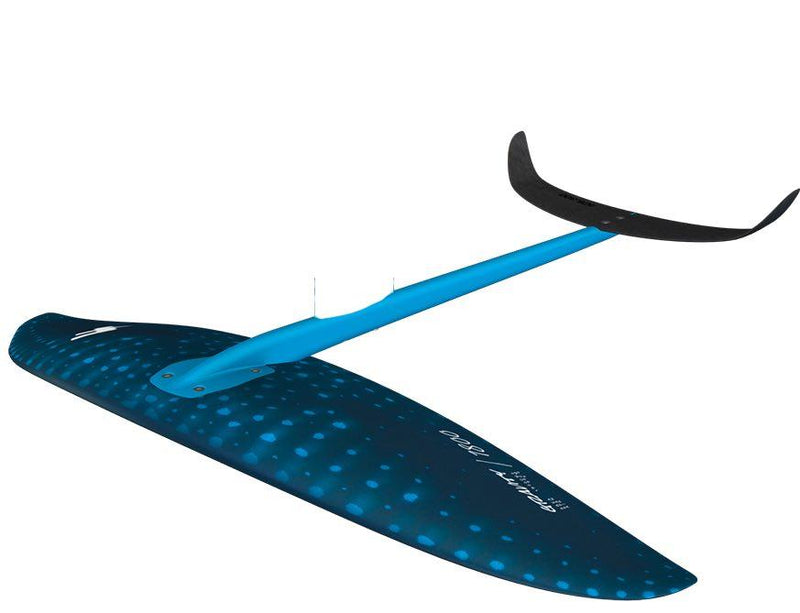

| FW | GRAVITY FCT 1800 | GRAVITY FCT 2200 |
| FUSELAGE | ALU FUSELAGE 74 SURF | ALU FUSELAGE 74 SURF |
| STAB | R275 SURF | R275 SURF |
Technology
FOIL COMPRESSION TECHNOLOGY
The FOIL COMPRESSION Technology is a F-ONE innovation offering impressive mechanical properties making it particularly suited for foil subjected to high stresses and bending loads.
FUSION LINK
The FUSION LINK enables the perfect connection.
The fuselage is screwed to the front wing using 4 x M6 – 14 mm screws , resulting in a connection geometry that ensures a very solid and stiff assembly.
ALUMINUM 6063 & 606
This aluminum alloy boasts some very good mechanical properties and can be processed in many different ways while also offering a natural resistance to corrosion.
Produced from an extrusion process, our aluminium profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.
Machining blocks of aluminium 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminium. All parts are fully anodized and stainless steel inserts are fitted with isolating gel when fastening is required.
