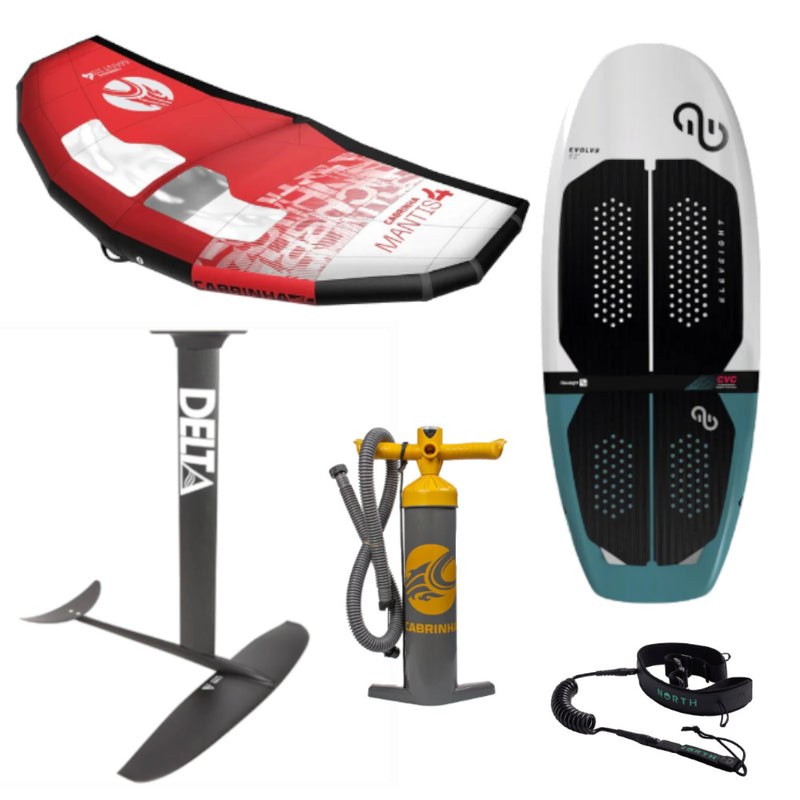

Includes: 2023 Cabrinha Mantis, Eleveight Evolve Wing Board, Delta M-Frame Foil Kit and North Waist Board Leash and XL Cabrinha Pump. The wing includes a wrist leash.

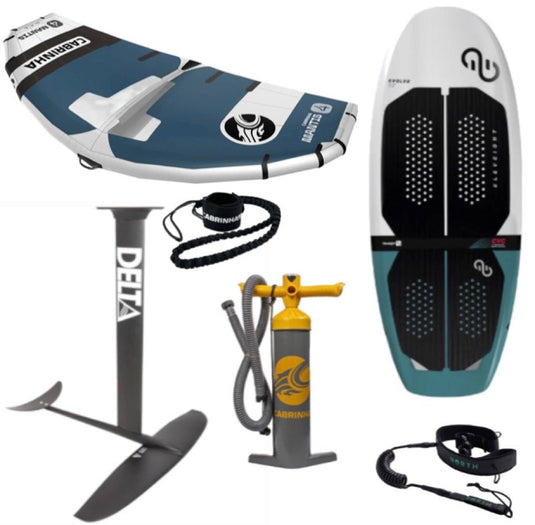

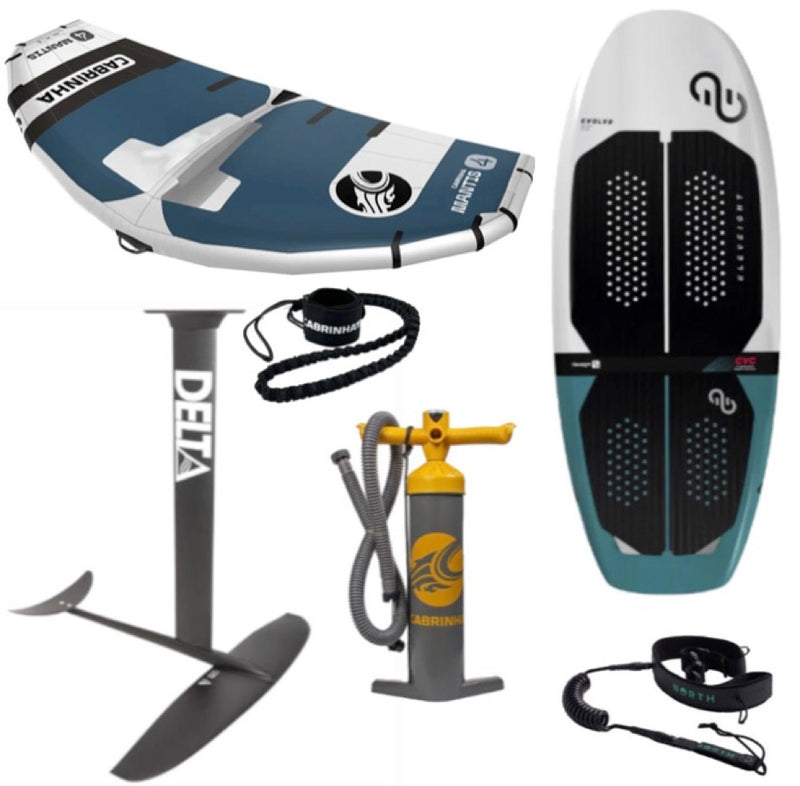

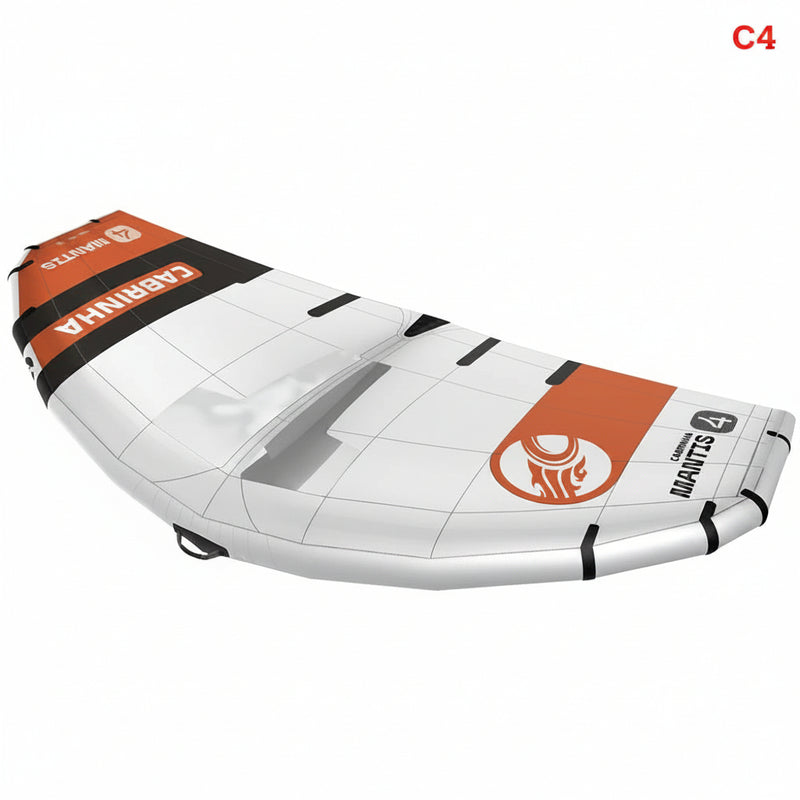

Cabrinha Mantis Wing Foil Package

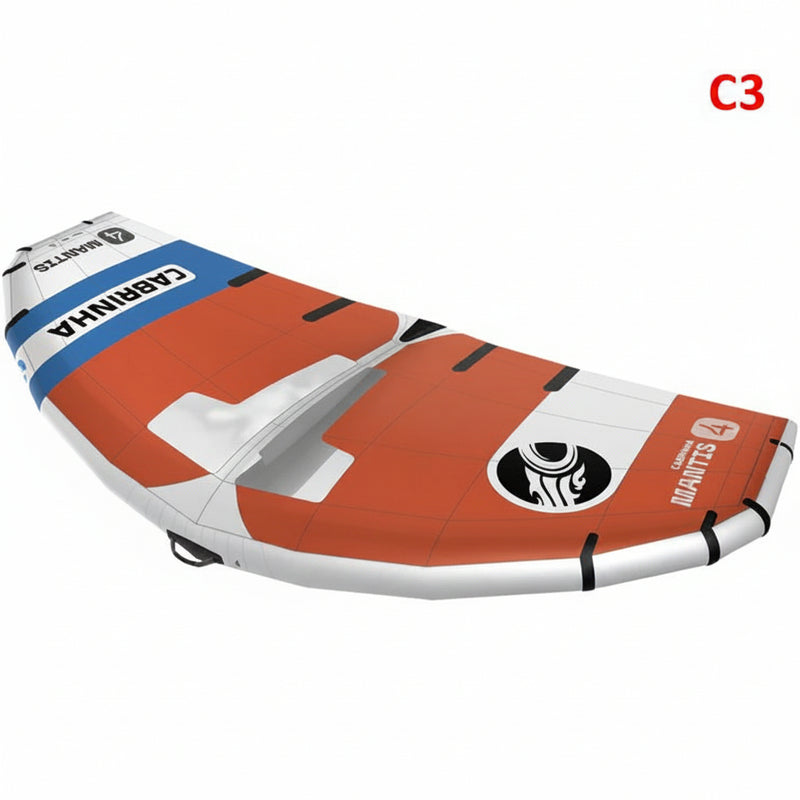

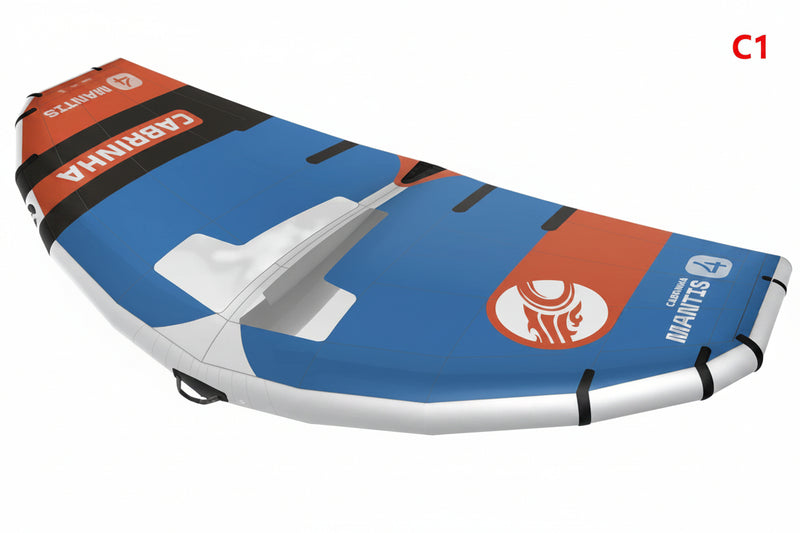

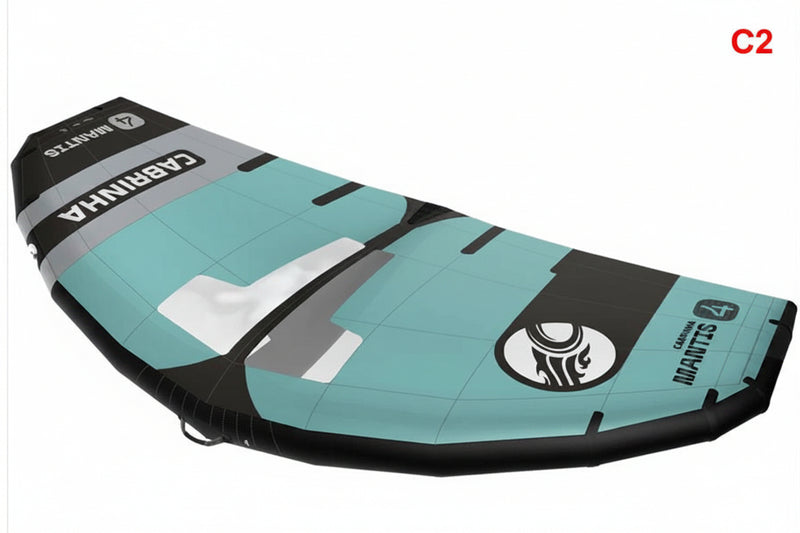

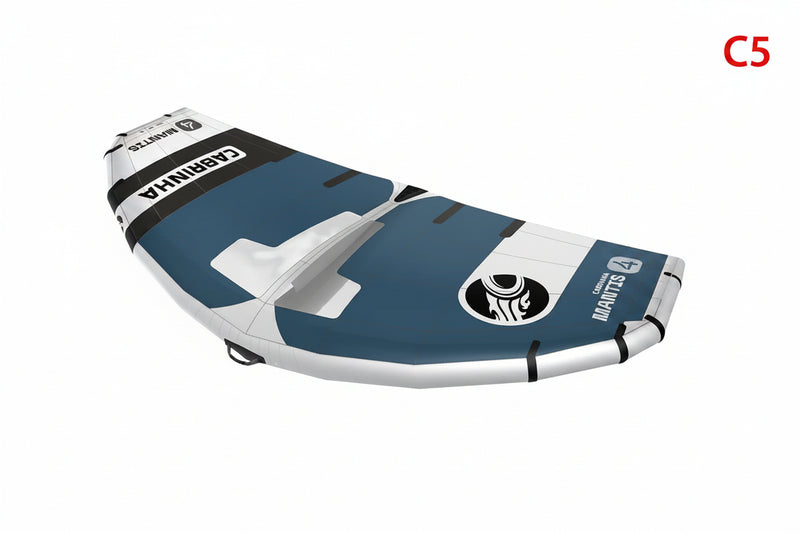

03S Cabrinha Mantis
ALL ROUND FREERIDE, STABLE FLAGGING, UPWIND DRIVE
If there is one wing that has helped shape and define the sport, it’s the Mantis.
Now in its 3rd generation the wing which set the benchmark for stability and rigidity has been further refined to maximize the true potential of wing foiling.
Increased convex dihedral has helped expand the range of the Mantis by providing an increased power to stability ratio, combined with the new Convex Strut the Mantis V3 is the cleanest and most efficient wing to date. A refined air foil section in the critical area of the wing has helped increase the low end power of the Mantis, further increasing its range of use.
DESIGN PROFILE
High rigidity LE Inflatable, Low Dihedral with full powerful profile, Medium AR and
convex strut
Key Features
-
NEW: Refined lightweight canopy design for reduced weight and reactive performance
-
High Tenacity Dacron for enhanced dihedral stability and improved handling characteristics
-
HD large diameter UHMPWE reinforced closing seam construction
-
Nano Ripstop Canopy, the benchmark in durability, stability and responsiveness
-
NEW: Sprint 3.0
-
NEW: Durable TPU bumpers
-
NEW: Handles - Fully molded composite widespan handles
-
Hi-vis, Weather resistant, low elongation TPU window
-
Load path panel layout
-
High reactive front handle
-
High rigidity center section stitching design
-
Lightweight TPU bladders
-
NEW: fine tuned size progressive wing tip twist for forgiving sheeting
-
NEW: Increased convex dihedral for power-to-stability ratio
-
NEW: refined airfoil center section for low end power
-
NEW: Convex strut for added rigidity
-
NEW: Dump valve for fast deflate
Technology
CONVEX DIHEDRAL
The increased Convex Dihedral has helped expand the range of the Mantis by providing an increased power to stability ratio.
LOAD PATH
The Load Path Panel Layout has been carefully designed to help mitigate the varying loads and elongation that occur on wings, translating into a cleaner and more structural product in a wider range of conditions.
REFINED FRAME
Refinements to the Frame of the Mantis V3 have allowed for a reduced weight, but increased reactive performance.
RIGID STRUT
The Convex strut on the Mantis V3 provides a stiffer and more reactive connection between the rider and wing.
HD LARGE DIAMETER CLOSING SEAM
A larger stiffer diameter LE requires an updated closing seam contribution to withstand the unique forces that winging provides.
PURE IMPULSE FRONT HANDLE
Infused with the technology of the Widespan Handles, the Pure Impulse front handle provides a direct location for carrying, maneuvering and also for controlling the wing.
2 X SPRINT 3.0
The new Sprint 3.0 inflation system increases air flow from leading edge to the strut. The new straight and angled valves allow for no kinking of the inflation tube. It's secure fit design also allows for easy maintenance. All Cabrinha wings sport 2 x Sprint 3.0 to aid in faster inflate and deflate times.
COMPOSITE WIDESPAN ANTI TWIST HANDLES
Multi material composite wide span handles provide the rigidity you need for control, but with the benefit of soft to touch materials in the areas you need it. The widespan design allows for micro adjustment to fine tune the wings performance, as well as to aid in transitions and maneuvers.
PURE IMPULSE FRONT HANDLE
Infused with the technology of the Widespan Handles, the Pure Impulse front handle provides a direct location for carrying, maneuvering and also for controlling the wing. On a wave the Pure Impulse Handle allows you to move the wing where you want it, when you want it, allowing you to focus on the wave ahead.
Eleveight Evolve Wingboard
Meet the Evolve, Eleveight's new compact board developed specifically for wing foiling with a wide range of volume choices suitable for all levels.
Available in 4 sizes, the short and wide platform is shaped to distribute the volume allowing for easy take-offs and offers a balanced board feel once on the foil. The 5.8 and 5.2 are the bigger sizes in the range suitable for beginners as well as heavier riders in need of a board with more volume. The construction is made for easy glide and planing with maximum stability. The more compact smaller sizes are optimized for intermediates giving a more dynamic and playful ride highly suited to wave and freeride conditions.
At the heart, the light EPS Core is surrounded by composite sandwich construction with a full carbon layer both top and bottom to ensure the Evolve is lightweight yet has maximum durability. Bevelled rails make touchdowns smoother, and narrowing them optimises your carving ability. The double concave shaped to a flat bottom offers soft landings as well as early planning, and the included full deck pad with tail kicker keeps your grip secure. The Evolve is fully adjustable to suit your riding stance with a 2 x 4 track mount system for easy foil position tweaks offering 90mm lateral spacing. Various foot strap options are also achievable via a double front foot strap.
Wing foilers of any level will enjoy the compact size and enhanced features of the Evolve that will take this new sport to the next level.
Eleveight Evolve Performance Features
- Dedicated board range for wing foilers
- Compact shape for enhanced stability and volume distribution
- Light Carbon CVC construction optimized for wing foiling
- 2 x 4 track mount system for adjustable foil positioning
- Durable block inserts for multiple foot strap options
Eleveight Trusted Quality
HIGH DENSITY EPS CORE
Lightweight and durable EPS foam core with long lasting durability.
COMPOSITE VACUUM CONSTRUCTION (CVC)
The progressive CVC construction allows us to shape the lightest, yet most durable boards.
PVC HIGH DENSITY FOAM
The front foot area is reinforced with PVC foam to enhances the board’s durability at points of high stress.
3K CARBON LAYER
The 3K carbon layer on bottom and top generates a light construction with maximum stiffness.
REINFORCED US BOX
The board comes with the proven US Boxes, which we integrated using extra-strong PVC foam and an extra patch of carbon for longevity.
SURFBOARD BLOCK INSERTS
Reinforced boxes with inserts allow different strap set-ups.
FULL DECK PAD MADE OF EVA
EVA foam ensures a slip-proof grip and high riding comfort.
CARRYING HANDLE
Transport your board with foil mounted.
Delta High Aspect Complete Foil M-Frame Kit
Front Wing:
1740 HIGH ASPECT
Recommended for riders above 180 lbs, this is a large wing with a lot of glide. This wing will also be appreciated by lighter riders who want to make the most of light wing foiling conditions.
Wing Span: 110cm
Aspect Ratio: 6.9
Fuselage:
LONG 770 (Recommended with all High Aspect wings)
For wing foiling, Delta recommend using the longer, 770, fuselage, as this will provide greater pitch stability and make foot switches a whole lot easier. The 770 fuselage is also recommended for foil surfing with the high aspect ratio wings. The 770 fuselage has a greater cross-sectional area and is better at supporting the large torque load generated by high aspect wings.
Stabilizer:
Wing Area: 280 sq cm
Wing Span: 36cm
Aspect Ratio: 4.6
