Short Description
Includes: Mast, Mast Cover, and Hardware
Description

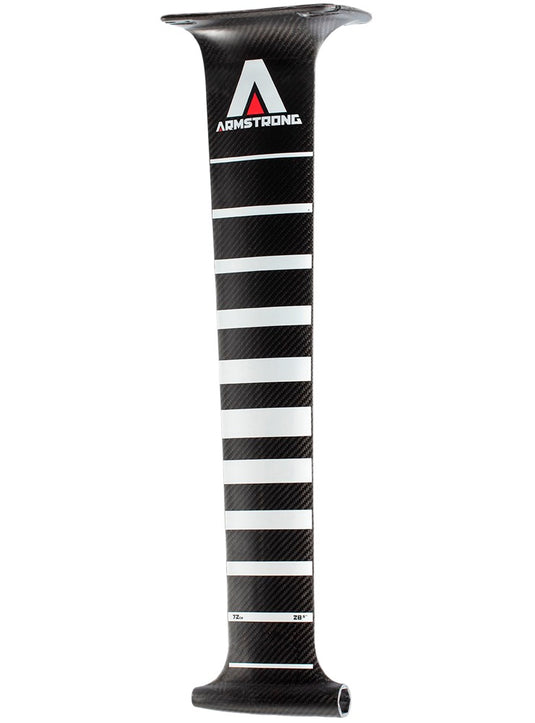

A+ V2 Masts
Armstrong's A+System is taking strength and durability into the future!
ARMSTRONG'S V2 FULLY TAPERED ONE PIECE MASTS ARE ULTRA SOLID AT THE TOP AND SLICK THROUGH THE WATER DOWN BELOW.
The unique quad c beam core layup delivers a mast with smooth consistent reactive flex, generating sweet handling response and better stability by smoothing out bumps and flexing precisely to drive you through turns.
The V2 masts also feature bombproof zero corrosion Bi Directional Titanium Washer and Titanium T Nut system, which creates a rock solid connection between mast and board.
The V2 mast construction and shape combine to make a mast that will deliver predictably every time.
Mast Length Guide
Choosing the right length mast is important depending on your ability and intended use.
-

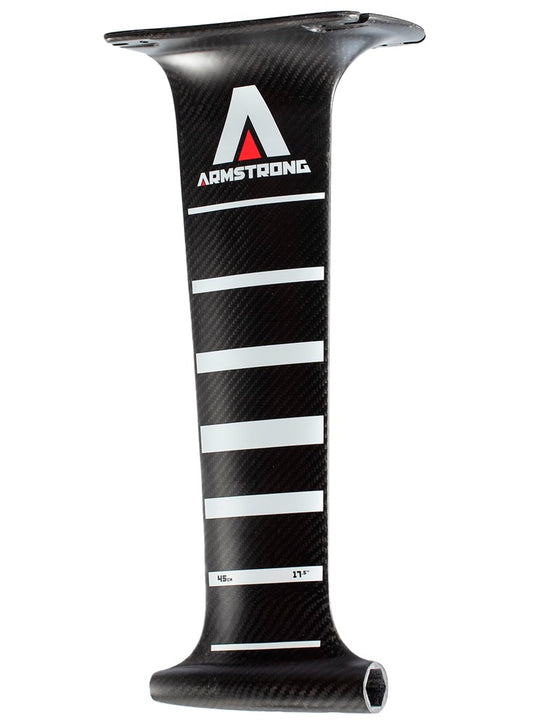

45cm/17.5" Awesome for shallow water and easy learning all foil sports.
-

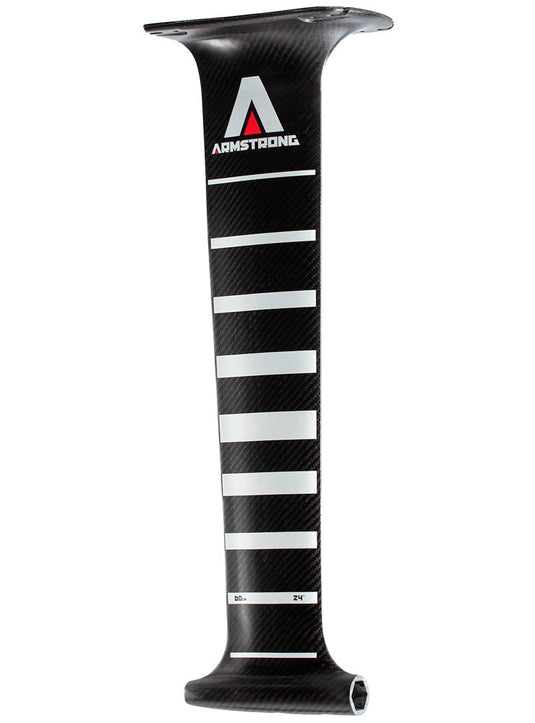

60cm/23.5" Shallow water and reef foiling where hitting the bottom might be an issue. Also a good choice for easy learning all foil sports.
-
72cm /28.5" The go to Foil Surf mast. An easy all rounder for all foil sports.
-

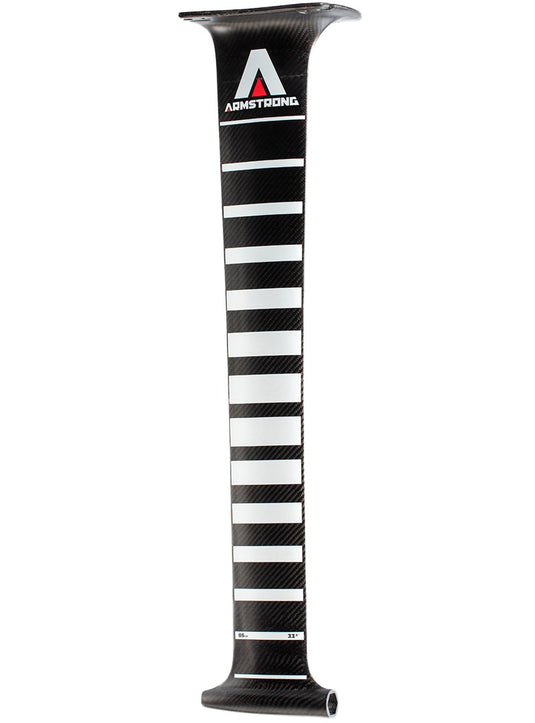

85cm /33.5" The 'do everything mast' : Intermediate/Advanced. SUP, Downwind, Kite, Wake, and Tow in Surfing.

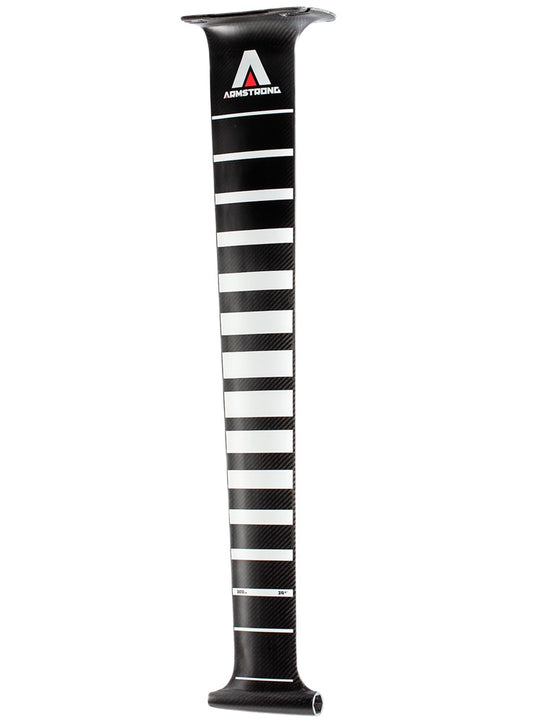

- 100cm/39.5" This is the choice for experienced Kite, Tow in Surfing and big wave charging.
Mast construction details
-
Armstrong's unique mast construction was developed in conjunction with composite experts who worked on Team New Zealand America’s Cup foils.
-
The quad C beam mast core delivers ‘dynamic reactive flex’ that equates to better strength, stability and control without compromising weight.
-
The mast layup is futuristic: at the heart is a multi-piece core that gets wrapped with carbon that has optimised fiber orientation to maximise the potential of the materials. 100% Carbon cloth outer shell ensures a part that is robust and will last.

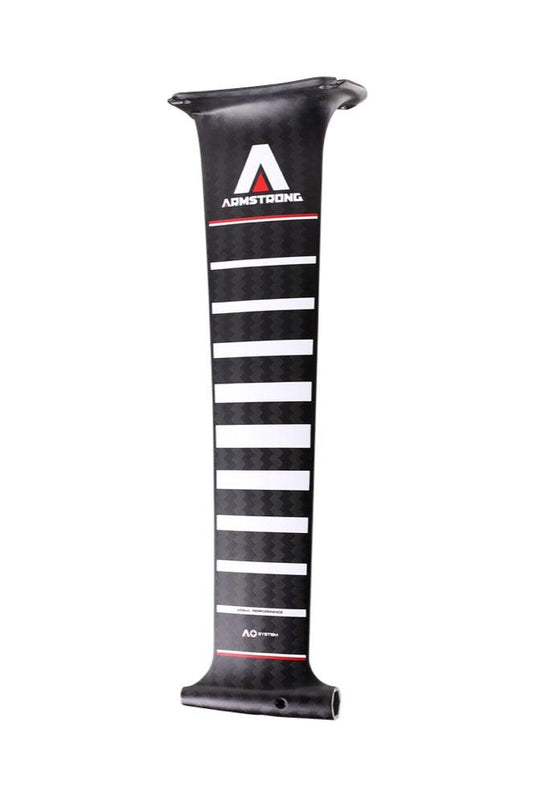

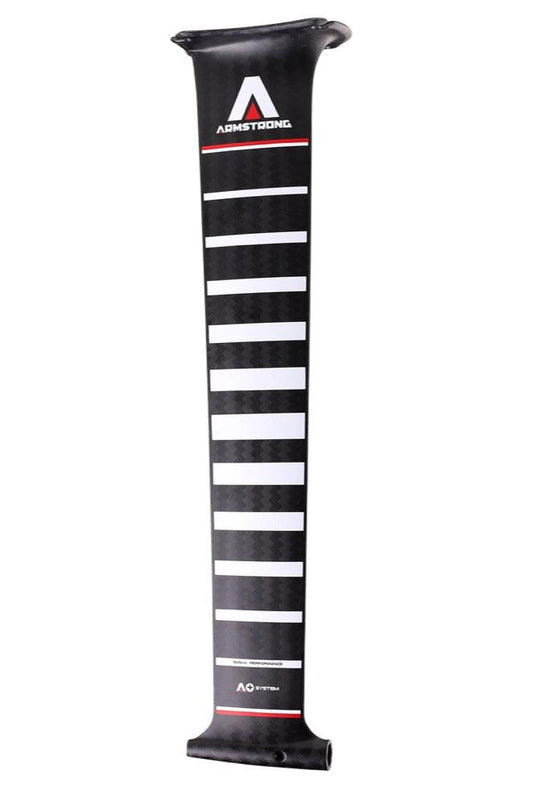

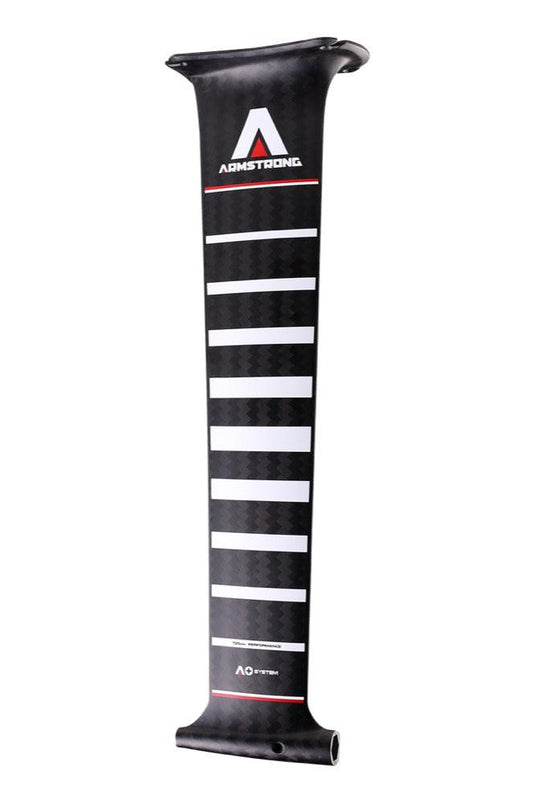

Performance Masts
The Performance Mast range is a clean-sheet design that takes the Armstrong feeling riders know and love to new heights. Sophisticated engineering and top shelf Toray High Modulus Carbon give these masts a unique combination of efficiency, stiffness and control at speed.
Development
“As the sport develops, riders push themselves and the equipment to the limits. After listening to feedback, we wanted to develop a new, innovative, ultra high-performance mast that minimizes drag and ventilation while also being stiffer and even more responsive.” - Armie Armstrong
Collaborating with a team of America’s Cup foil engineers, we set out to develop a high performance mast to take us into the future. Our design goal called for a unique blend of strength, stiffness, drag and light weight. Combining CFD analysis with expert insight allowed us to tune each section of the mast from baseplate to fuselage connection for maximum efficiency.
“Working with the latest premium composites available, we torture tested over 100 prototypes to work out the optimal fiber orientation for strength and designed flex. In keeping with our philosophy of strength and light weight, we redesigned the mast top geometry to shave off every possible extra gram of dead weight.” - Armie Armstrong
Structural analysis shows that a combination of both high modulus (HM) and intermediate modulus (IM) carbon fibers best distributes loads throughout various sections of the mast. HM's stiffness minimizes flex in the mast's central strut area and IM's high tensile strength caters to the complex shapes of the top plate and fuselage connection.
The result is a top of the line mast consisting of top shelf materials, new mast section, refined baseplate, reduced drag fuselage connection and new construction method. Proprietary titanium M7 mast top hardware follows suit with a strong, light and drag reducing connection to the board.
These masts are designed with a mast rake angle. This fine tunes the board angle relative to the foil for a more comfortable and forgiving ride. It does not change the lifting force or balance of the foil itself, and it does not impact the foil’s “foot pressure” bias front or back. Board rocker also directly determines effective mast rake – boards from different brands have a variety of different rocker lines which influence rake angle – and more rocker in the rear half of board effectively increases mast rake. The 1 degree of rake we’ve placed specifically into the top of the Performance Mast shape provides three main benefits by adjusting the board relative to the foil underwater:
- By bringing the foil closer to 0 degrees when the board is in the water, drag is reduced which makes takeoffs easier.
- Touching down at speed or landing a jump is more forgiving and there’s less chance of crashing headfirst over the board.
- By lifting the board nose slightly (1 degree = 17.46mm/m), mast rake makes it easier to ride fast without catching the nose at steep riding angles.
Simply put, the Performance Mast range takes the sublime Armstrong feeling further than ever.
Sizes
- 655mm: PUMP, PRONE SURF, SUP SURF
- 725mm: PRONE SURF, PUMP, SUP SURF, WAKE, DOWNWIND, WING

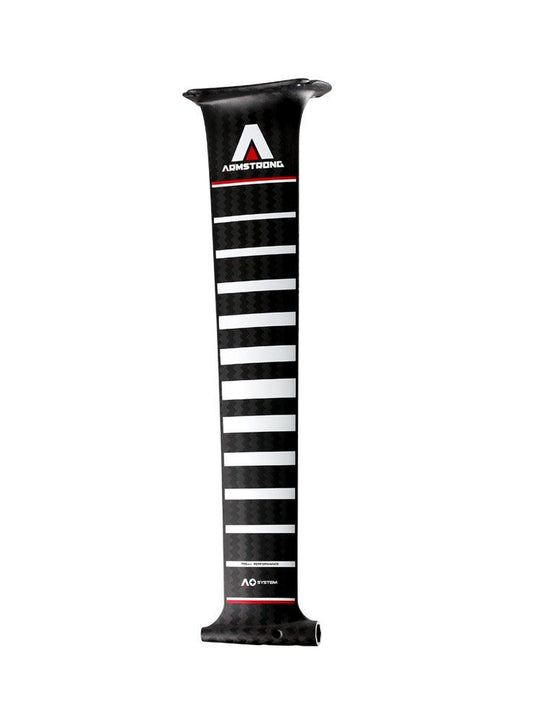

- 795mm: WING, PRONE SURF, SUP SURF, DOWNWIND
- 865mm: WING, SUP SURF, TOW SURF, KITE, DOWNWIND, PRONE SURF

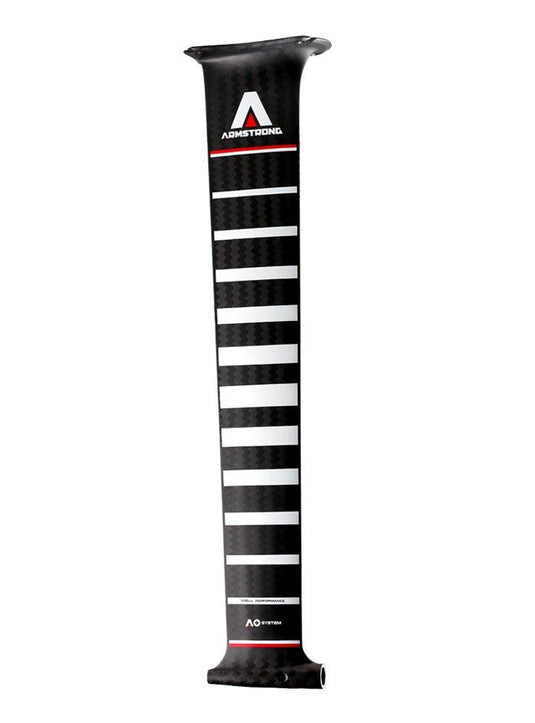

- 935mm: WING, TOW SURF, KITE

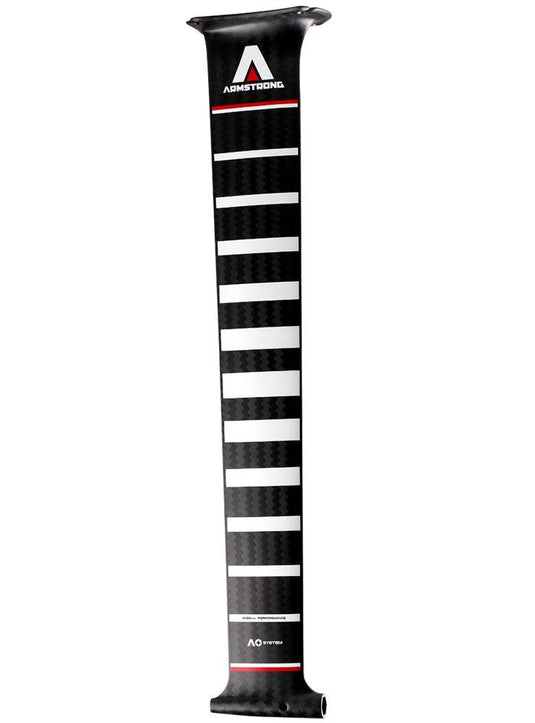

- 1035mm: WING, TOW SURF, KITE
