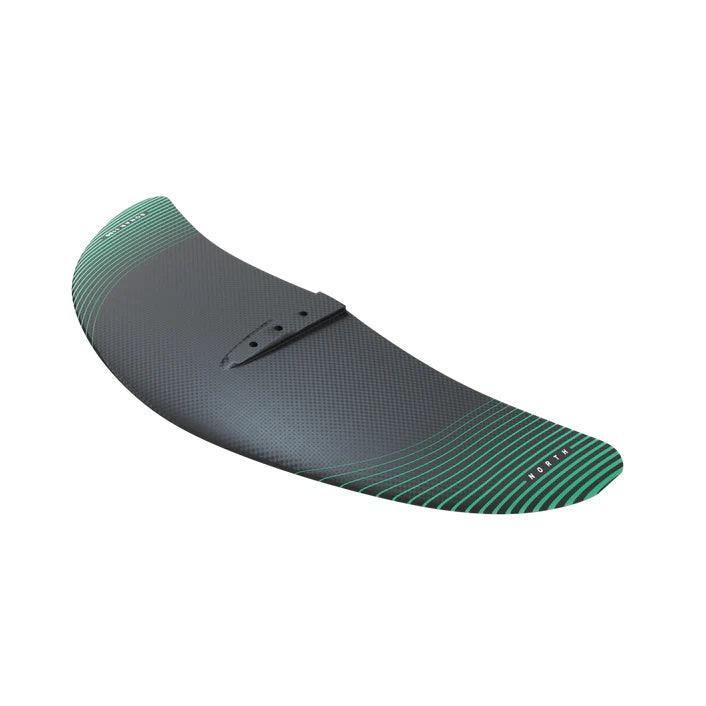

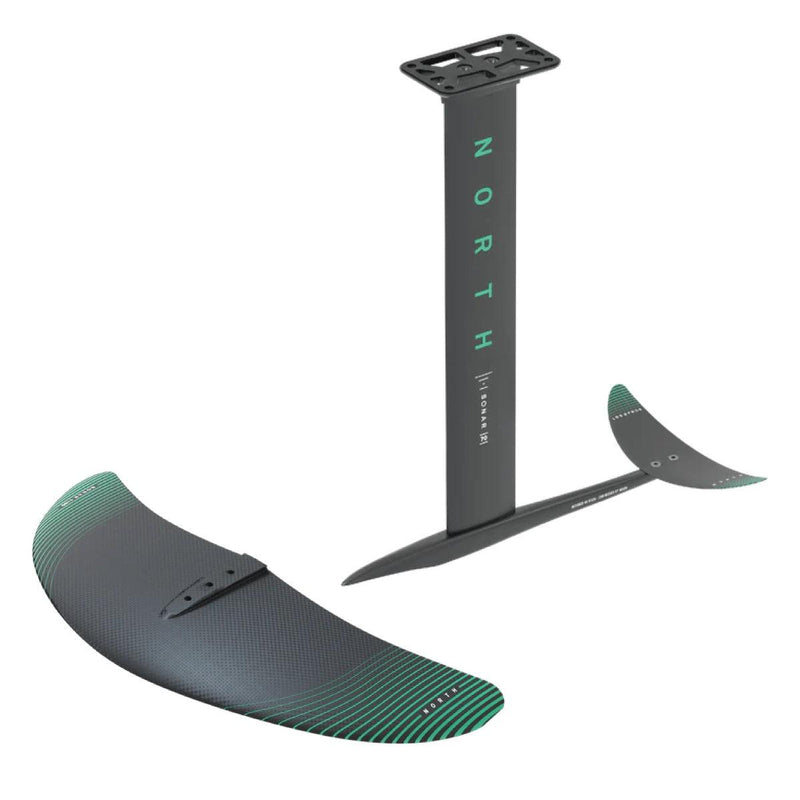

Includes: 850 Front Wing, S01 Stabilizer, AK70cm Mast, A600 Fuselage, AK Board Adaptor, Foil Tool Set, Foil Screw Packs A, B, C, Wing cover, Stabilizer Cover, and Sonar Travel Bag.
Foil Board and foil to board attachment hardware sold separately.
2021 North Sonar Complete Foil
Kite foil in comfort and control, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water. Engineered to last, with exceptional strength to weight ratio, and North's unique GeoLock system for a clean, direct feel with minimum resistance on the water. The Kite Edition with AK70 Mast provides you with the ideal mast, fuselage and stabilizer for learning to kite-foil or kite-foiling in shallow waters. The AK85 mast setup performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions.
(Foil Board and foil to board attachment hardware sold separately)
Key Features
- Precisely CNC-machined aluminum AK70 or AK85 Kite Foil Mast
- GeoLock tapered geometry locking system
- Carbon pre-preg S01 Stabilizer for control and riding comfort
- Lightweight AK Board Adaptor for optimum load transfer and direct steering impulse
- Industry standard 165x90mm bolt pattern
- Hydrodynamically-optimized A600 Fuselage
- Fully modular foil system
- Supplied with Heavy Duty 600D Padded Travel Bag
- Foil to board mounting screws supplied with North Foil Boards (sold separately)
Technology
AK70 or AK85 Kite Foil Mast
Precisely CNC-machined from 6061-T6 anodized aeronautical-grade aluminum for minimum resistance, with structurally engineered connections for an exceptional strength to weight ratio.
The AK70 Mast provides is ideal for learning to kite-foil or kite-foiling in shallow waters. The AK85 mast performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions.
GeoLock Tapered Geometry Locking System
Engineered to last, North's unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece.
Screws engage the GeoLock while the load transfer now takes place over the full cross-section of the mast profile, allowing for a more efficient load distribution and longer-lasting connection.
Carbon Pre-Preg S01 Stabilizer
For control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery.
In perfect harmony with any Front Wing, North's dihedral-shaped carbon pre-preg rear stabilizer provides control and riding comfort, allowing fast pivoting turns and easy surface breach-recovery.
The Stabilizer's positioning on top of the Fuselage allows for a clean, undisturbed approaching flow. Surface piercing of the Stabilizer is not a problem, as the Front Wing sits deeper in the water and is still fully submerged, giving you that extra time to react and adjust your ride height.
Lightweight AK Board Adapter
The Sonar Foil System is connected to the board by a lightweight CNC-machined aluminum Board Adapter with a tapered geometry locking connection that engages with the mast.
Fusing Board Adaptor and mast together to build one union for optimum load transfer and a stronger, more direct feeling and steering impulse when foiling.
Industry Standard 165x90mm Bolt Pattern
The Sonar Foil System can be mounted to any foil board with a 165x90mm bolt pattern. Foil Board and foil to board attachment screws are sold separately.
A600 Fuselage
CNC-machined anodized aeronautical grade 6061-T6 aluminum Fuselage. Hydrodynamically optimized shape for minimum resistance.
Fully Modular Foil System
Customize your ride with North's fully interchangeable foil parts to explore multiple disciplines and riding styles all with one setup.
Heavy Duty 600D Padded Travel Bag
Stow your Sonar Quiver safely in between sessions with North's Heavy Duty 600D Padded Travel Bag. Roomy enough inside to fit the complete Sonar Foil set, including all three wings and three masts inside their individual covers.
The bag also has enough depth to leave the Board Adaptor connected to the mast, making your foil pack down faster. Designed with straps, clips and interior pockets to secure contents. Your worry-free travel companion. Included with every complete Foil Edition.
