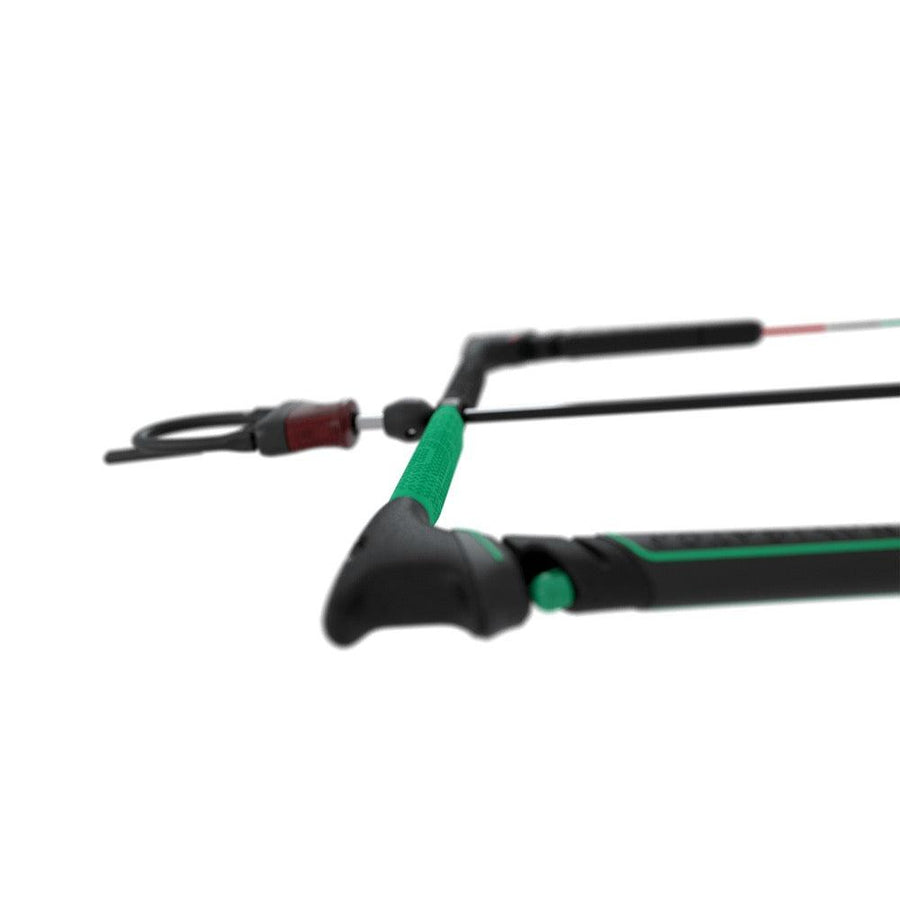

2022 North Navigator Control System
- Switch effortlessly between disciplines - no tools required
- Intuitive single-action reload
- Uncompromised direct performance
Think less, feel more
Switch effortlessly between disciplines with the Toolless Interloop, North's no-tools required modular harness loop replacement system. The Navigator Control System connects you intuitively to your kite, using industry-leading SK99 Dyneema lines from Liros for precise performance. The 2022 Connect Quick Release and leash now complies with ISO Standard 21853:2020. Faster, safer release and intuitive single-action reload in all conditions. Available in three sizes, the refined ergonomic design offers durability, comfort and tactile control. Knowing your kite's position just became second nature.
Switch effortlessly between disciplines - no tools required.
Simply push, twist, pull, lock and go. The Toolless InterLoops are made from optimised TPU material for flex and durability, with a more rigid freeride security finger to prevent unexpected unhooking.
Intuitive single-action reload
Security and performance in all conditions. Our patented and ISO-approved Connect Quick Release (QR) raises the bar in kite control system safety.
Uncompromised direct performance
North's industry-leading 100% Dyneema SK99 flying lines are strong, thinner profile and pre-stretched for less parasitic drag and uncompromised direct performance. With 88m of flying lines in the air, you can really feel the difference thinner line creates.
2022 Navigator Details
TOOLLESS INTERLOOP SYSTEM WITH LOCKGUARD
Switch effortlessly between disciplines - no tools required. Simply push, twist, pull, lock and go. Loops are made from optimised TPU material for flex and durability, with a more rigid freeride security finger to prevent unexpected unhooking. Flexible LockGuard safety ring prevents accidental release of your interloop.
SOFT EVA BAR ENDS WITH RETRACTABLE LINE WINDERS
The positive buoyancy bar ends with integrated line winder bungees are injection moulded in one piece with no-glue seams for long-lasting quality. The bar ends ensure nothing hard comes in touch with you or your board, float the entire bar, and also contain the concealed rear line adjustment. Even the best quality lines shrink over time, so after a month, we recommend you check your lines are all even and drop them to the bottom knot. It’s easy and takes only a minute to make the change.
PROTECTIVE PU-COVERED LEADER LINES
To help prevent line abrasion from uncovered lines against your skin, North used colour-coded PU tubing covers. The covers also help them remain rigid and out of the way when the flying lines aren't under tension.
ADJUSTABLE CLEATED TRIM SYSTEM
Provides industry-proven line-adjustment when needed. The cleat base has been designed with circular geometry for consistent bar spin. In overpowered conditions the cleat allows you to shorten your front lines and remain in a comfortable body position.
LIGHTWEIGHT OVER-MOLDED TRIM HANDLE WITH DYNEEMA LINES
Easy to reach moulded trim handle doesn't hurt when it hits you. Made from Nylon/EVA for strength with a textured soft-touch grip. Top-quality German-made extremely high wear Dyneema depower and trim line with a special impregnation coating for resistance to abrasion.
DURABLE COVERED MAINLINE, WITH CUSTOMISED TPU TUBING
Symmetric multibore landing line channel allows the landing line/flying line to pass through without snagging, regardless of the orientation when deploying or reloading. Crafted from a patented material specifically formulated for high abrasion flexible applications.
CUSTOM LOW-FRICTION SPINNING HANDLE
Unspin your front lines easily.
ADJUSTABLE LENGTH FLYING LINES 22M (12M + 10M)
22m lines have a split at 12m, which is far enough for the bar to travel to completely depower our largest kite when you flag out. Remove the standard 10m top section of flying line and 12m lines are ideal for schools to teach with and for foil racing. 8m and 6m line extensions are available as an accessory for wave riding or tighter kiteloops.
KOOK-PROOF FLYING LINE CONNECTORS
Ensure you always set up your flying lines correctly. Designed to be exactly the same length so you can easily change the front (knotted end) and rear (lark's head loop) connectors to match most other manufacturers' kite configurations. Please familiarise yourself with the safety procedures and trimming instructions outlined in your kite’s user manual.
PREMIUM QUICK RELEASE LEASH
The Navigator Control System is supplied with a premium quality freeride Leash with a high load carabiner, soft neoprene cover and non-abrasive elasticised webbing. The leash QR mechanism has been modified to ensure correct orientation is maintained when released for consistent, safe release and reload.
INTUITIVE SINGLE-ACTION RELOAD
Security and performance in all conditions. Our patented and ISO-approved Connect Quick Release (QR) raises the bar in kite control system safety. The red QR handle has been ergonomically designed to fit in your hand comfortably for an industry-standard push away release. All loaded or running surfaces feature highly polished 316 stainless steel and low-friction components. The larger diameter bungee inside the QR helps reduce accidental release.
INDUSTRY-LEADING 100% DYNEEMA SK99 FLYING LINES
Strong, thinner profile, pre-stretched flying lines mean less parasitic drag and uncompromised direct performance. With 88m of flying lines in the air, you can really feel the difference thinner line creates. North's latest technology high-load LIROS DC-401 Pro flying lines have extreme stretch resistance and minimal diameter (1.6mm).
THREE ADJUSTABLE BAR LENGTH OPTIONS
Fine tune the turning speed of your kite. The Navigator is available in three sizes 50-55cm (L), 45-50cm (M) and 38-43cm (S). To extend/retract bar length simply pull out cassettes on the bar-ends, rotate 180 degrees and snap back into place.
OMNIDIRECTIONAL GRIP WITH OFFSET FINGER BAR AND COLOUR-CODED COMPONENTS
Feel more connected. The Navigator is designed with a comfortable ergonomic grip for a natural grasp and the tactile offset finger bar is slightly oval, so you can feel when the control bar is orientated correctly. The colour-coded bar ends, leader tubing and line retainer pull tabs give a nod to our sailing heritage, port (red) and starboard (green).
SPINNING LEASH ATTACHMENT RING
North's oval-shaped leash pin ring is elongated for easier fastening of the leash carabiner, and spins to help prevent your landing line from twisting.
DYNEEMA TRIM LINE
Top-quality German-made extremely high wear Dyneema depower and trim lines, with special impregnation coating for resistance to abrasion.
