Includes: 1500R OR 1850R Front Wing, 70cm OR 85cm Mast, Board Adaptor, Fuselage AF 600, S01 Stabilizer with Cover, Foil Tool Set, Screw Packs A, B, C, and Travel Bag.
Foil to board mounting fasteners are included with North foil boards.
2021 North Sonar Foil Alu Edition Package
North's fully customizable Sonar mast/fuse/stab setup performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions. Engineered to last, with exceptional strength to weight ratio, and North's unique GeoLock system for a clean, direct feel with minimum resistance on the water.
Ride in comfort and control, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water. Simply choose the Sonar Front Wing best suited to your needs to complete your setup.
Key Features
- Precisely CNC-machined aluminum AK70 or AK85 Kite Foil Mast
- GeoLock tapered geometry locking system
- Carbon pre-preg S01 Stabilizer for control and riding comfort
- Lightweight AK Board Adaptor for optimum load transfer and direct steering impulse
- Industry standard 165x90mm bolt pattern
- Hydrodynamically-optimized A600 Fuselage
- Fully modular foil system
- Supplied with Heavy Duty 600D Padded Travel Bag
- Foil to board mounting screws supplied with North Foil Boards (sold separately)

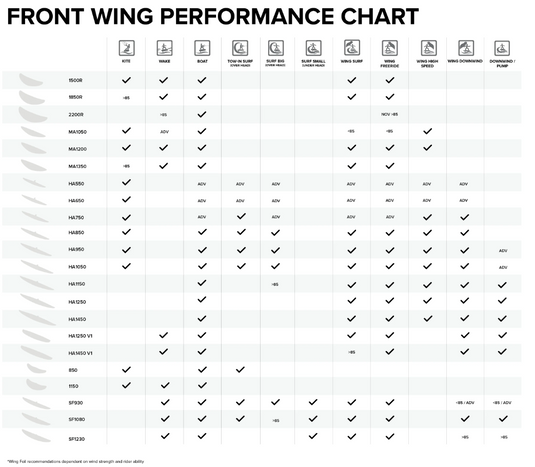

North Sonar Reflexed Front Wings
Kite / Surf / Wing / SUP / Wake

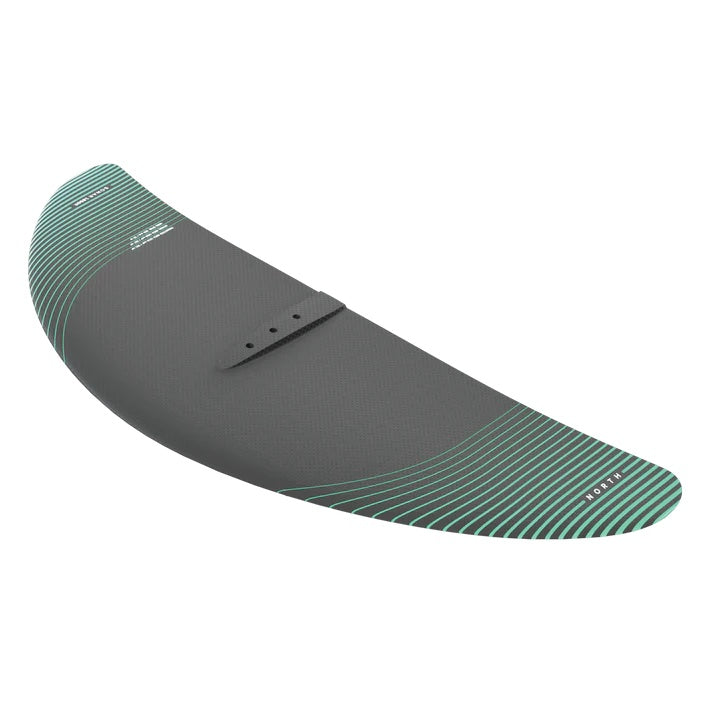

Sonar 1500R
The Sonar 1500R is a true crossover wing with real performance across every foiling discipline. So stable, you’ll feel like you’re like standing on the ground. The 1500R is great for prone foil surfing in medium to large waves, has a smooth carvy feel and fits nicely in the pocket. Its predictable lift gives you time to find a comfortable stance without fighting to keep the nose down as the foil accelerates.
So you’re able to remain in the same position over the entire speed range. The balance of the foil system means you can place your back foot further behind the mast, letting you ride the board more like a shortboard. North's new, specialized reflexed-camber foil section design gives the wing pitch stability and prevents your board’s tendency to nose up strongly when you first get going. Thus, it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness. A reflexed wing gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
North Sonar 1500R Highlights
- Performance crossover kite/surf/wing foil
- Reflexed technology for stability and speed
- Self-trimming
Sonar 1500R Details
TIGHT CARVING AND SNAPPY TURNS
Low to medium aspect ratio swept wing for maximum fun on and off the waves, with a low stall speed.
PRE-PREG CARBON TECHNOLOGY
Ultimate high-performance composite material
PERFORMANCE CROSSOVER KITE/SURF/WING FOIL
A true crossover wing with real performance across every foiling discipline. So stable, you’ll feel like you’re like standing on the ground. The 1500R has a smooth carvy feel and fits nicely in the pocket.
PATENT-PENDING REFLEXED TECHNOLOGY FOR STABILITY AND SPEED
North's new, specialized reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment and gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
SELF-TRIMMING
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
MASSIVE RANGE, LOW STALL SPEED AND INCREDIBLE CONTROL
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness.
Sonar 1850R
The reflexed 1850R front wing gives you impressive control throughout the entire speed range, with extreme top-end speeds for such a large wing and an unbelievably low stall speed. Also a true crossover wing, the 1850R has more lift than the 1500R. In smaller to medium waves, prone foil surfers can perfect shorter radius surf-style turns with ease.
Great for wing-foiling in all conditions and perfect for learning to foil, the 1850R is also still kite-able. Featuring North's new, patent-pending reflexed-camber foil section design to give the wing pitch stability and prevent your board’s tendency to nose up strongly when you first get going. This eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
The 1850R has a relatively large surface area, which makes it highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because it is positioned on the fuselage with a lower angle of attack, the 1850R feels smaller than it is in terms of speed range and responsiveness.
North Sonar 1850R Highlights
- Performance crossover wing for heavier riders or lighter winds
- Patent-pending reflexed technology
- Pitch stability
- Self-trimming
- Massive range
- Slow stall-speed
- Smaller to medium waves
- Shorter radius turns
Sonar 1850R Details
REFLEXED WING TECHNOLOGY
The Sonar Reflexed Wing Series. Featuring North's new, patent-pending reflexed-camber foil section design to give the wing pitch stability.
PRE-PREG CARBON TECHNOLOGY
Ultimate high-performance composite material
PERFORMANCE CROSSOVER KITE/SURF/WING FOIL
A true crossover wing with real performance across every foiling discipline fir heavier riders and lighter winds. So stable, you’ll feel like you’re like standing on the ground.
PATENT-PENDING REFLEXED TECHNOLOGY FOR STABILITY AND SPEED
North's new, specialized reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing which counters the downward pitching moment and gives you impressive control throughout the entire speed range, with extreme top-end speeds unheard of for a wing that size.
SELF-TRIMMING
The reflexed wing prevents your board’s tendency to nose up strongly when you first get going. Thus it eliminates the need for you to change your position to trim the board as you speed up, or as you drop-in on a wave.
MASSIVE RANGE, LOW STALL SPEED AND INCREDIBLE CONTROL
The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible roll and pitch stability. Usually, a large wing means more drag, hence less speed. But because you can position the reflexed wings on the fuselage with a lower angle of attack, they feel smaller than they are in terms of their speed range and responsiveness.
2021 North Sonar Aluminum Kite Edition AK70 | AK85
Kite foil in comfort and control, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water. Engineered to last, with exceptional strength to weight ratio, and our unique GeoLock system for a clean, direct feel with minimum resistance on the water.
The Kite Edition with AK70 Mast provides you with the ideal mast, fuselage and stabilizer for learning to kite-foil or kite-foiling in shallow waters. The AK85 mast setup performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions. Simply choose the Sonar Front Wing best suited to your needs to complete your setup.
Technology

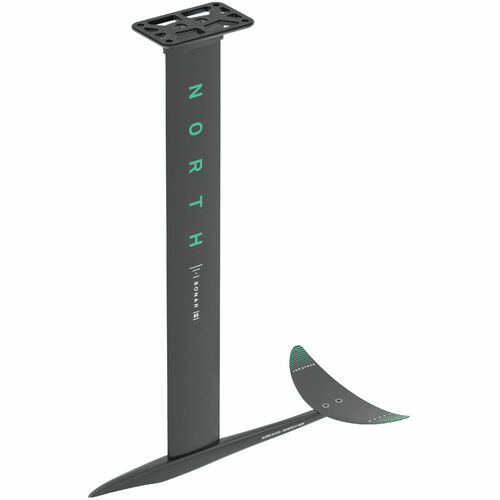

AK70 or AK85 Kite Foil Mast
Precisely CNC-machined from 6061-T6 anodized aeronautical-grade aluminum for minimum resistance, with structurally engineered connections for an exceptional strength to weight ratio.
The AK70 Mast provides is ideal for learning to kite-foil or kite-foiling in shallow waters. The AK85 mast performs across all disciplines and offers you more ride height to clear waves or to heel over for tighter turns. It is also more forgiving in rougher conditions.
GeoLock Tapered Geometry Locking System
Engineered to last, North's unique GeoLock tapered geometry locking system provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece.
Screws engage the GeoLock while the load transfer now takes place over the full cross-section of the mast profile, allowing for a more efficient load distribution and longer-lasting connection.
Lightweight AK Board Adapter
The Sonar Foil System is connected to the board by a lightweight CNC-machined aluminum Board Adapter with a tapered geometry locking connection that engages with the mast.
Fusing Board Adaptor and mast together to build one union for optimum load transfer and a stronger, more direct feeling and steering impulse when foiling.
S01 Stabilizer
This dihedral-shaped rear stabilizer provides control and riding comfort, allowing fast pivoting turns and easy recovery from surface breaching. The Stabilizer's positioning on top of the Fuselage allows for a clean, undisturbed approaching flow.
Surface piercing of the stabilizer is not a problem as the Front Wing sits deeper in the water and is still fully submerged, giving you that extra time to react and adjust your ride height. Simply push the nose of your board down to foil on.
Industry Standard 165x90mm Bolt Pattern
The Sonar Foil System can be mounted to any foilboard with a 165x90mm bolt pattern. Foil Board and foil to board attachment screws are sold separately.
A600 Fuselage
CNC-machined anodized aeronautical grade 6061-T6 aluminum Fuselage. Hydrodynamically optimized shape for minimum resistance.
Fully Modular Foil System
Customize your ride with North's fully interchangeable foil parts to explore multiple disciplines and riding styles all with one setup.
Heavy Duty 600D Padded Travel Bag
Stow your Sonar Quiver safely in between sessions with North's Heavy Duty 600D Padded Travel Bag. Roomy enough inside to fit the complete Sonar Foil set, including all three wings and three masts inside their individual covers.
The bag also has enough depth to leave the Board Adaptor connected to the mast, making your foil pack down faster. Designed with straps, clips and interior pockets to secure contents. Your worry-free travel companion. Included with every complete Foil Edition.
